REFERENCE SIGNALSZN1062

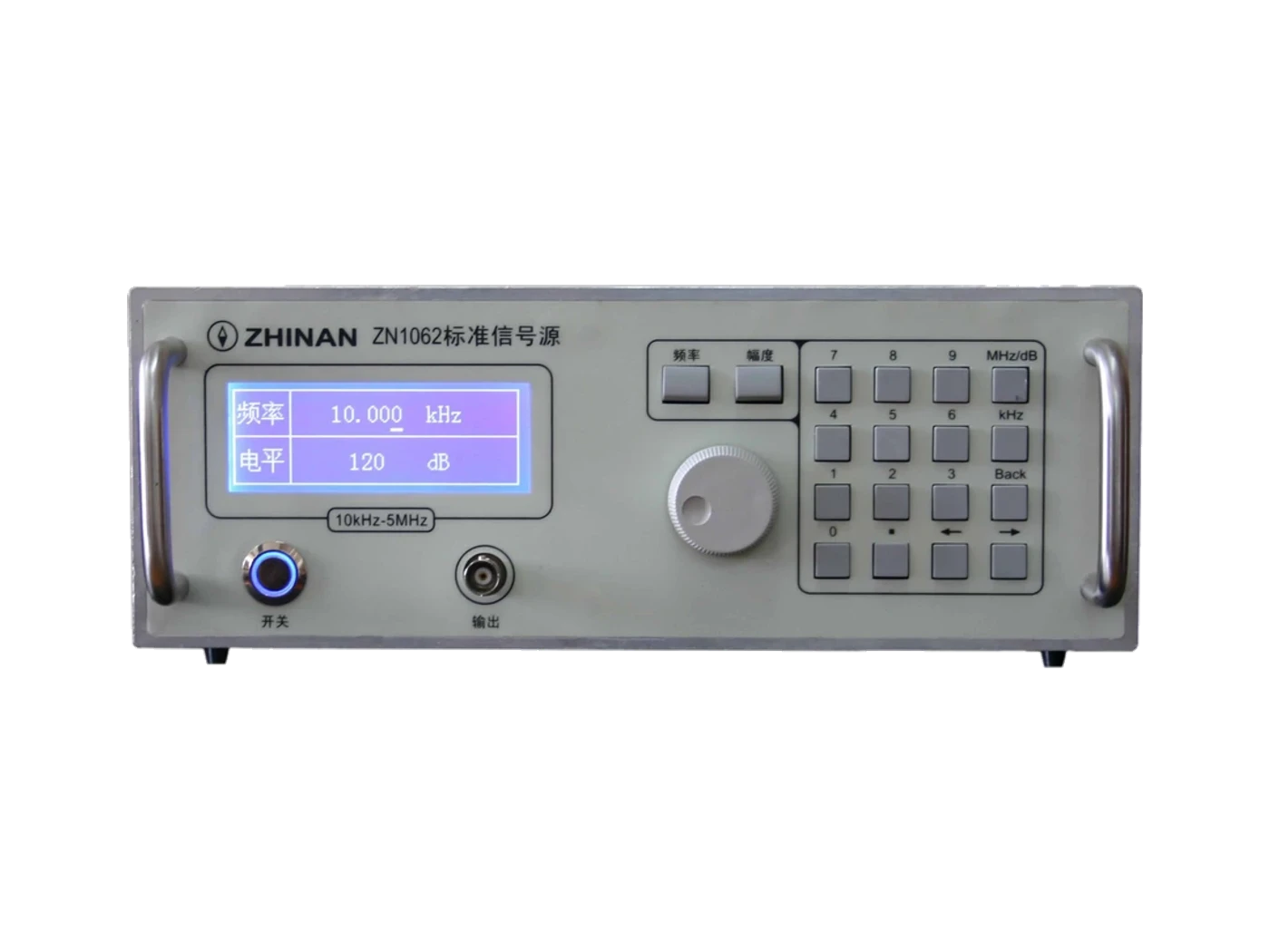

Standard Signal Generator
Standard Signal Generator with published frequency coverage of 10 kHz-5 MHz. It is intended for EMC calibration and measurement-chain verification and integration into complete EMC test chains.
CISPR 16 seriesCISPR TR 18-2
10 kHz-5 MHzFrequency coverage
10 kHz-5 MHzFrequency range
±0.005%Frequency accuracy
PRODUCT CAPABILITY
Designed around the measurement.
Designed for signal generators applications
Operating coverage: 10 kHz-5 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range10 kHz-5 MHz
Frequency accuracy±0.005%
Output voltage10 dB-120 dB（1 μV，50 Ω）
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN1062. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN1062 used for?
ZN1062 is designed for EMC calibration, Shielding tests, Measurement-chain verification. Its published frequency coverage is 10 kHz-5 MHz.
What frequency range does the ZN1062 cover?
The published frequency coverage is 10 kHz-5 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN1062?
This product is associated with CISPR 16 series, CISPR TR 18-2 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN1062?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
