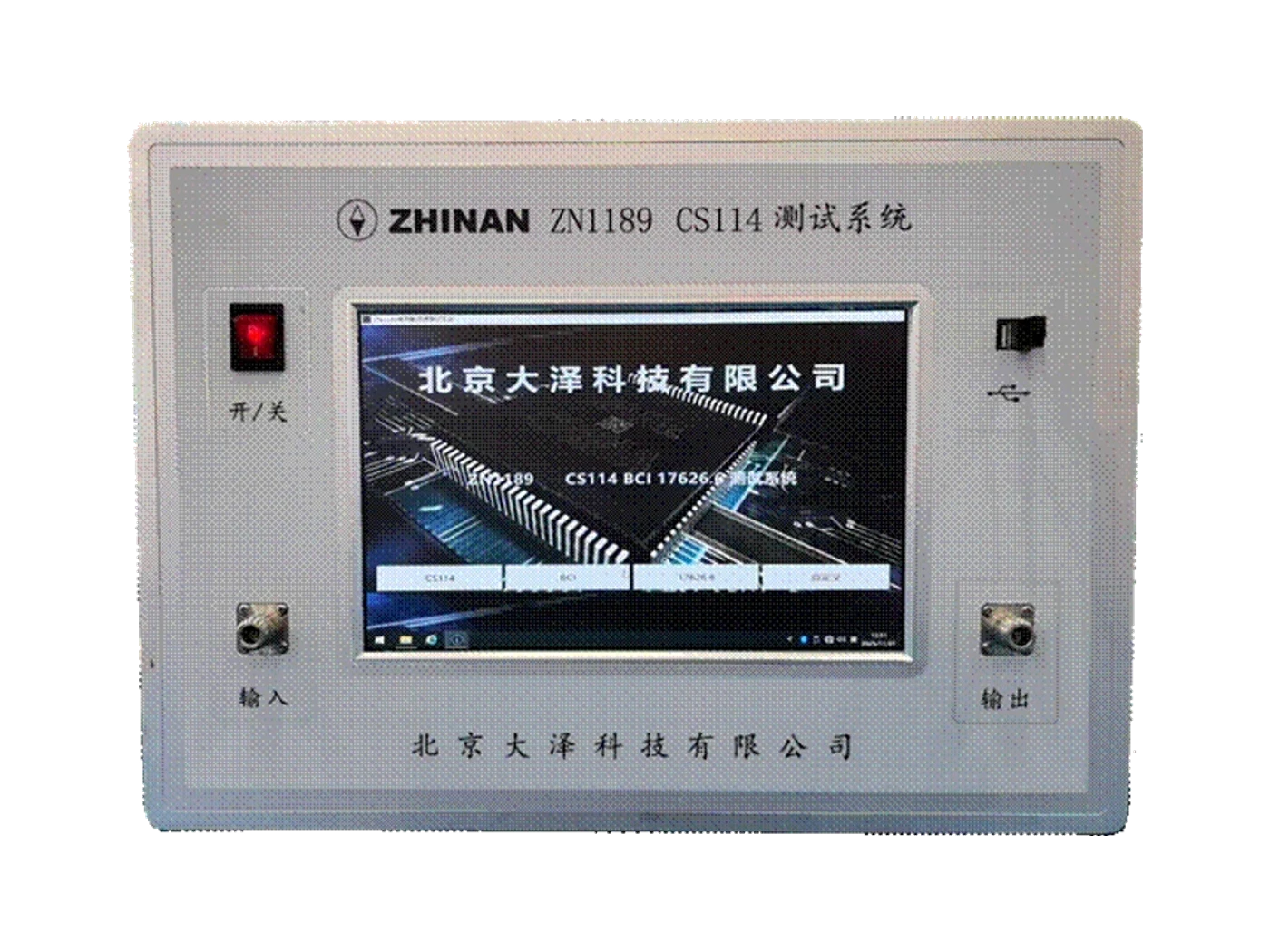

COMPLETE IMMUNITY PLATFORMZN1189
Conducted Susceptibility Test System
A conducted-susceptibility platform for BCI, monitoring and calibrated RF-injection workflows.
ISO 11452-4MIL-STD-461H / CS114
2 kHz–400 MHzSystem coverage
BCI / CS114Supported methods
IntegratedTest workflow
PRODUCT CAPABILITY
Designed around the measurement.
Signal generation, amplification, injection and monitoring in one chain
Supports calibration and closed-loop current control
Configurable injection and monitoring probes
Designed for automotive, defense and laboratory applications
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range2 kHz–400 MHz
System typeConducted susceptibility
Supported methodsBCI / CS114
ConfigurationSource, amplifier, injection and monitoring
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN1189. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN1189 used for?
ZN1189 is designed for BCI immunity, CS114 testing, Automotive electronics. Its published frequency coverage is 2 kHz–400 MHz.
What frequency range does the ZN1189 cover?
The published frequency coverage is 2 kHz–400 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN1189?
This product is associated with ISO 11452-4, MIL-STD-461H / CS114 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN1189?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
