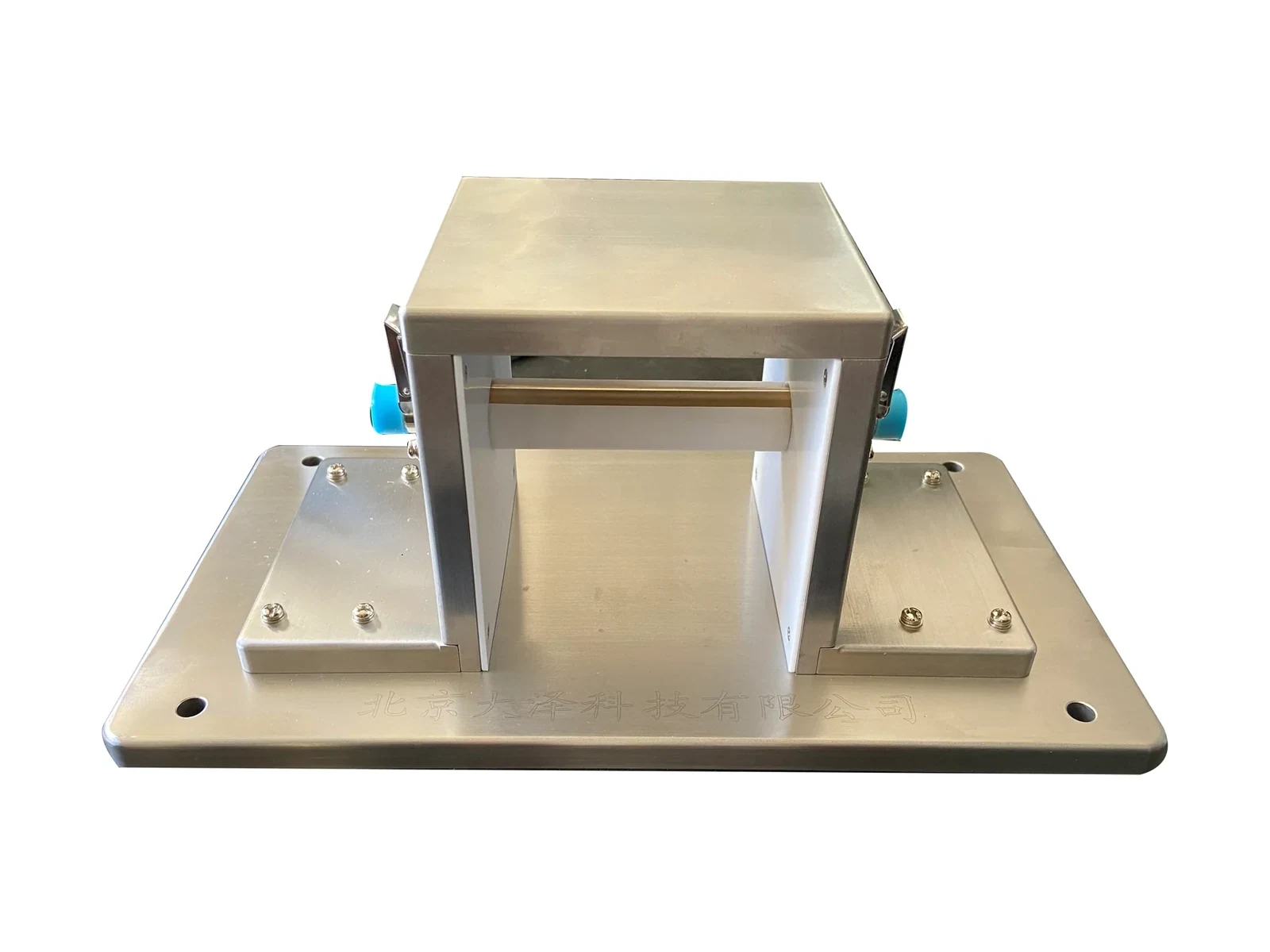

CALIBRATION HARDWAREZN23101E
Current-Probe Calibration Fixture
Current-Probe Calibration Fixture with published frequency coverage of 4 kHz–400 MHz. It is intended for probe calibration and test-level verification and integration into complete EMC test chains.
MIL-STD-461HISO 11452 seriesIEC 61000-4-6
4 kHz–400 MHzFrequency coverage
4 kHz-400 MHzFrequency range
50 ΩCharacteristic impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for calibration fixtures applications
Operating coverage: 4 kHz–400 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range4 kHz-400 MHz
Characteristic impedance50 Ω
Average VSWR< 1.5
Clamp apertureΦ26 mm
Dimensions336 × 180 × 143 mm
Weight13 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN23101E. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN23101E used for?
ZN23101E is designed for Probe calibration, Substitution calibration, Test-level verification. Its published frequency coverage is 4 kHz–400 MHz.
What frequency range does the ZN23101E cover?
The published frequency coverage is 4 kHz–400 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN23101E?
This product is associated with MIL-STD-461H, ISO 11452 series, IEC 61000-4-6 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN23101E?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
