CURRENT MONITORINGZN23101H

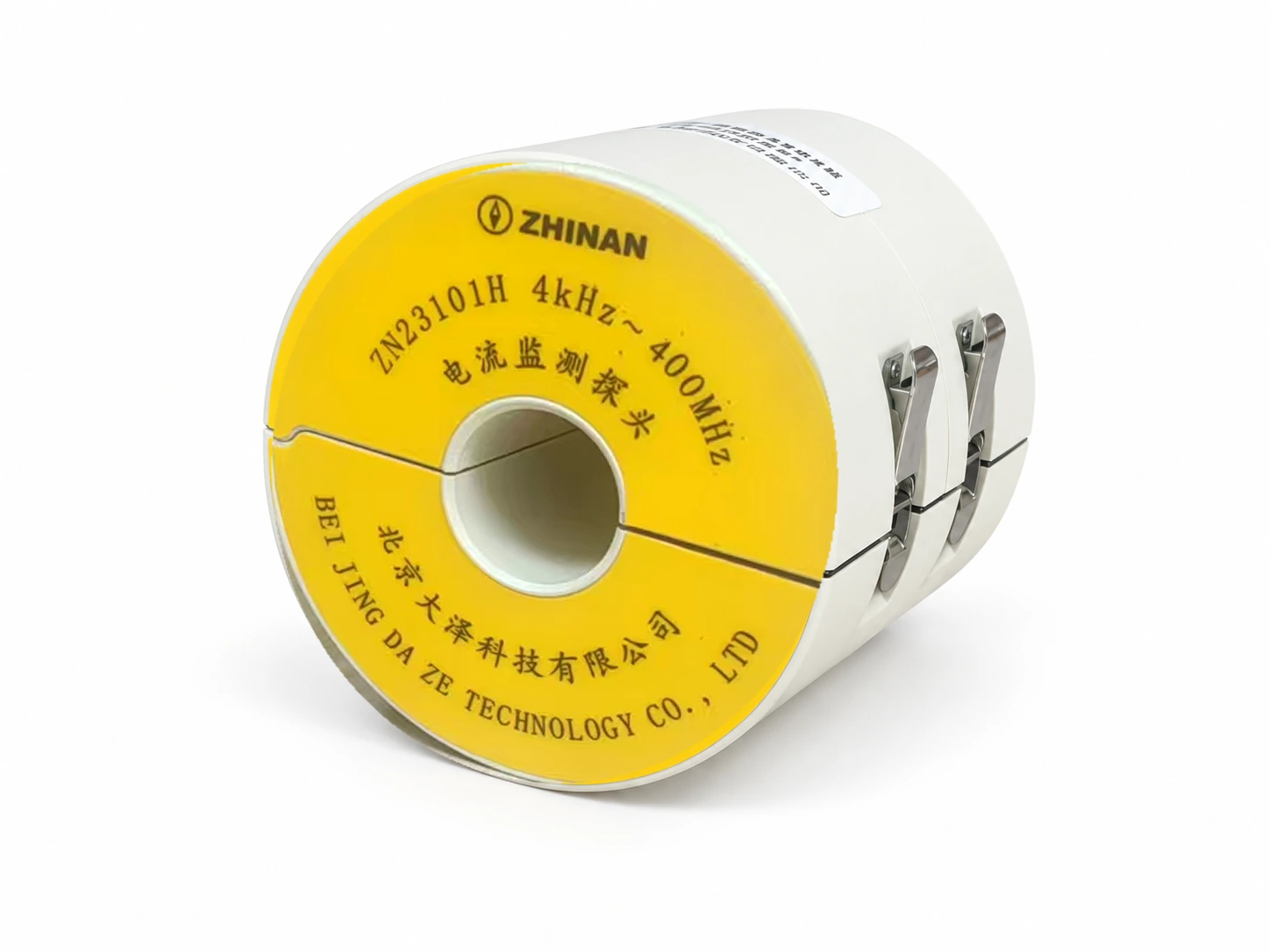

Current Monitoring Clamp
Current Monitoring Clamp with published frequency coverage of 4 kHz–400 MHz. It is intended for RF current measurement on cables and harnesses and integration into complete EMC test chains.
MIL-STD-461HISO 11452 seriesIEC 61000-4-6
4 kHz–400 MHzFrequency coverage
4 kHz-400 MHzFrequency range
50 ΩInput impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for current monitoring probes applications
Operating coverage: 4 kHz–400 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range4 kHz-400 MHz
Input impedance50 Ω
Average power5 W
WeightApprox. 2.4 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Power and level
Match monitoring or injection range to the amplifier, load and calibration fixture.
Supporting hardware
Plan the calibration fixture, RF cable, termination and monitoring equipment.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN23101H. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN23101H used for?
ZN23101H is designed for Cable-current measurement, EMC diagnostics, Compliance testing. Its published frequency coverage is 4 kHz–400 MHz.
What frequency range does the ZN23101H cover?
The published frequency coverage is 4 kHz–400 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN23101H?
This product is associated with MIL-STD-461H, ISO 11452 series, IEC 61000-4-6 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN23101H?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
