IMPEDANCE MATCHINGZN28100

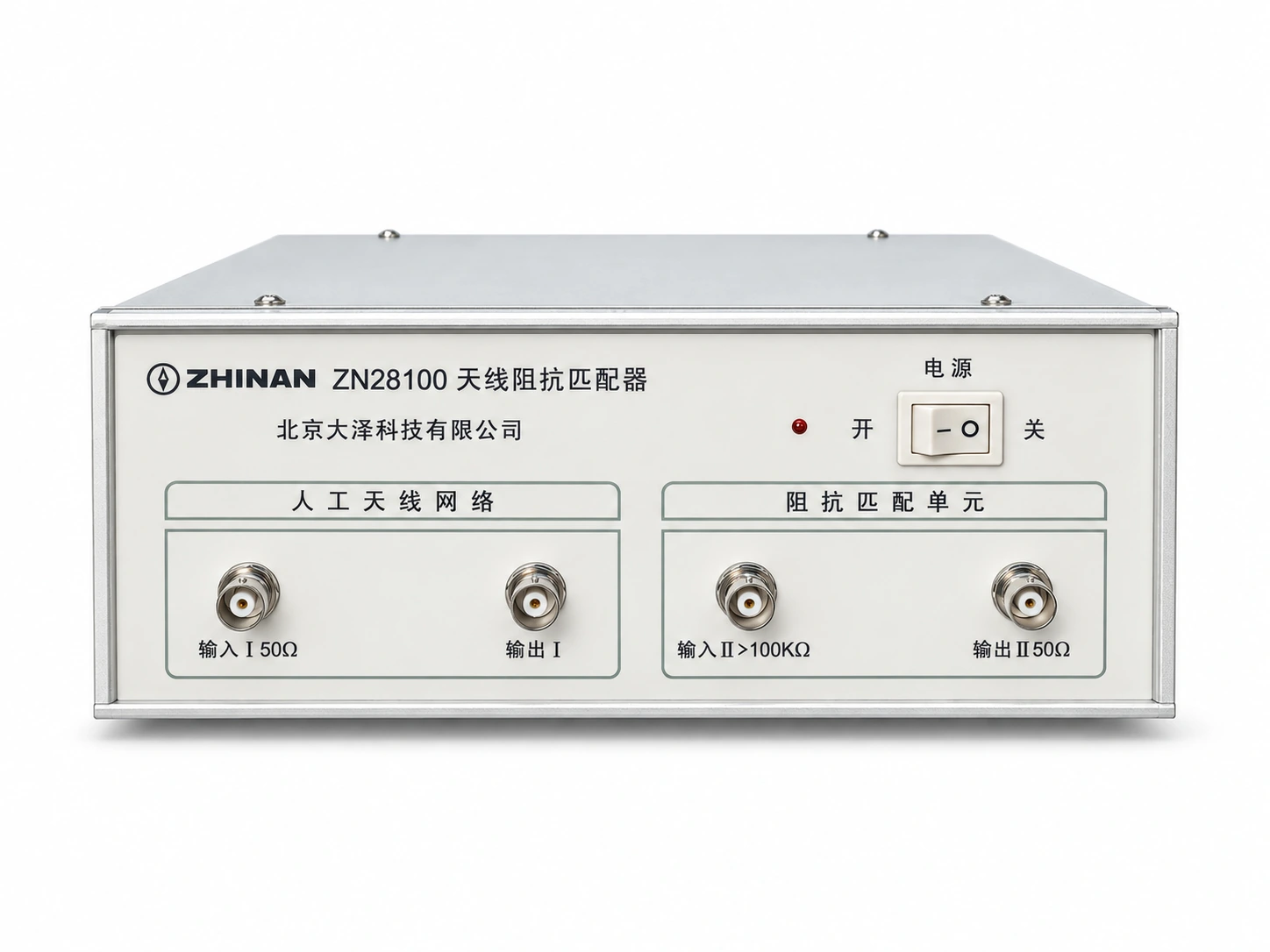

Antenna Impedance Matcher
Antenna Impedance Matcher with published frequency coverage of 150 kHz–6.2 MHz. It is intended for measurement-chain impedance matching and calibration and integration into complete EMC test chains.
ISO 11452 series
150 kHz–6.2 MHzFrequency coverage
150 kHz-6.2 MHzFrequency range
50 ΩArtificial-network input impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for impedance matching applications
Operating coverage: 150 kHz–6.2 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz-6.2 MHz
Artificial-network input impedance50 Ω
Matching-unit input impedance> 100 kΩ
Gain accuracy±0.5 dB
Power consumptionApprox. 4 W
WeightApprox. 4 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN28100. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN28100 used for?
ZN28100 is designed for System matching, Measurement-chain integration, Calibration. Its published frequency coverage is 150 kHz–6.2 MHz.
What frequency range does the ZN28100 cover?
The published frequency coverage is 150 kHz–6.2 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN28100?
This product is associated with ISO 11452 series on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN28100?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
