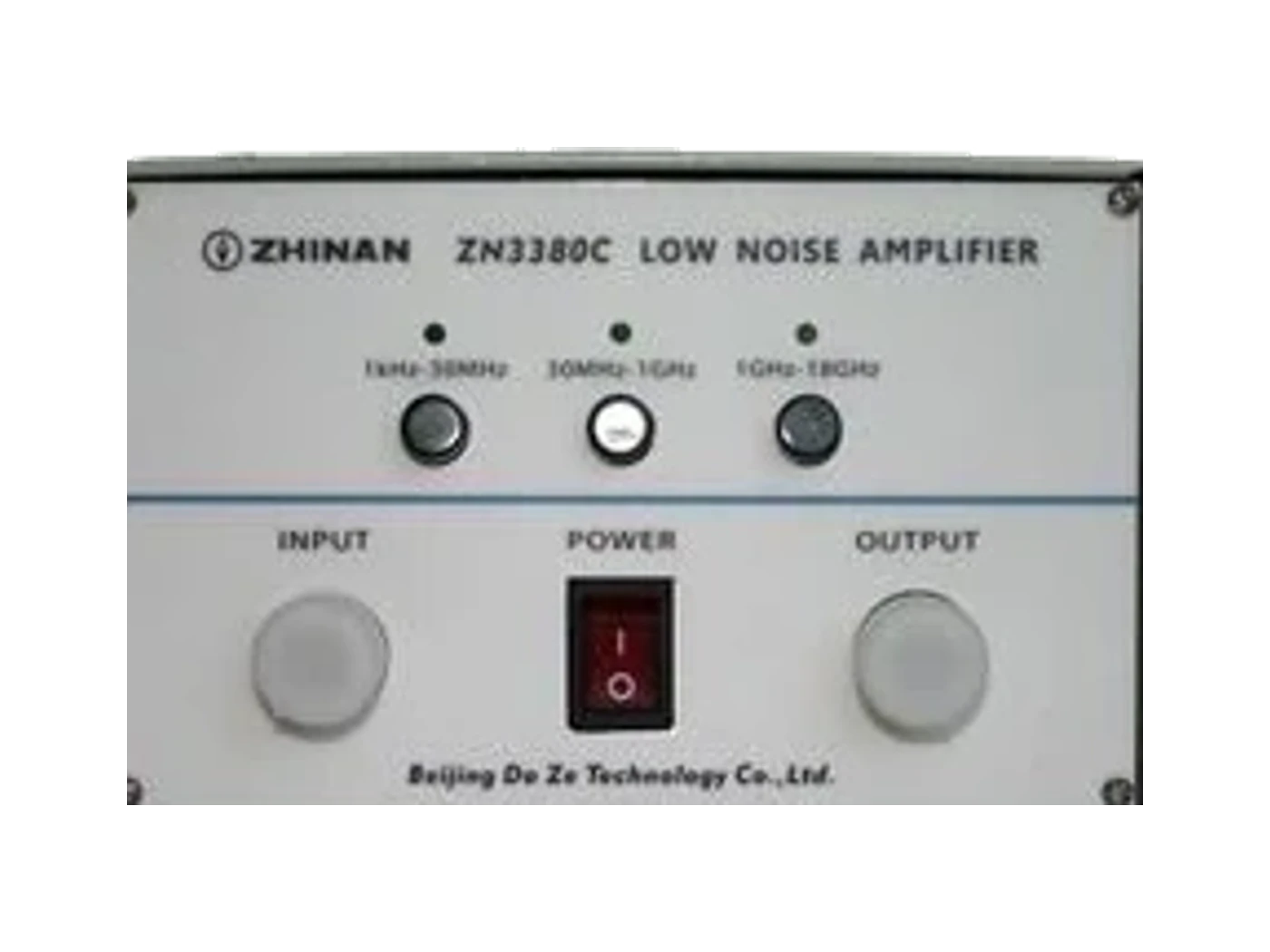

LOW-NOISE AMPLIFICATIONZN3380C

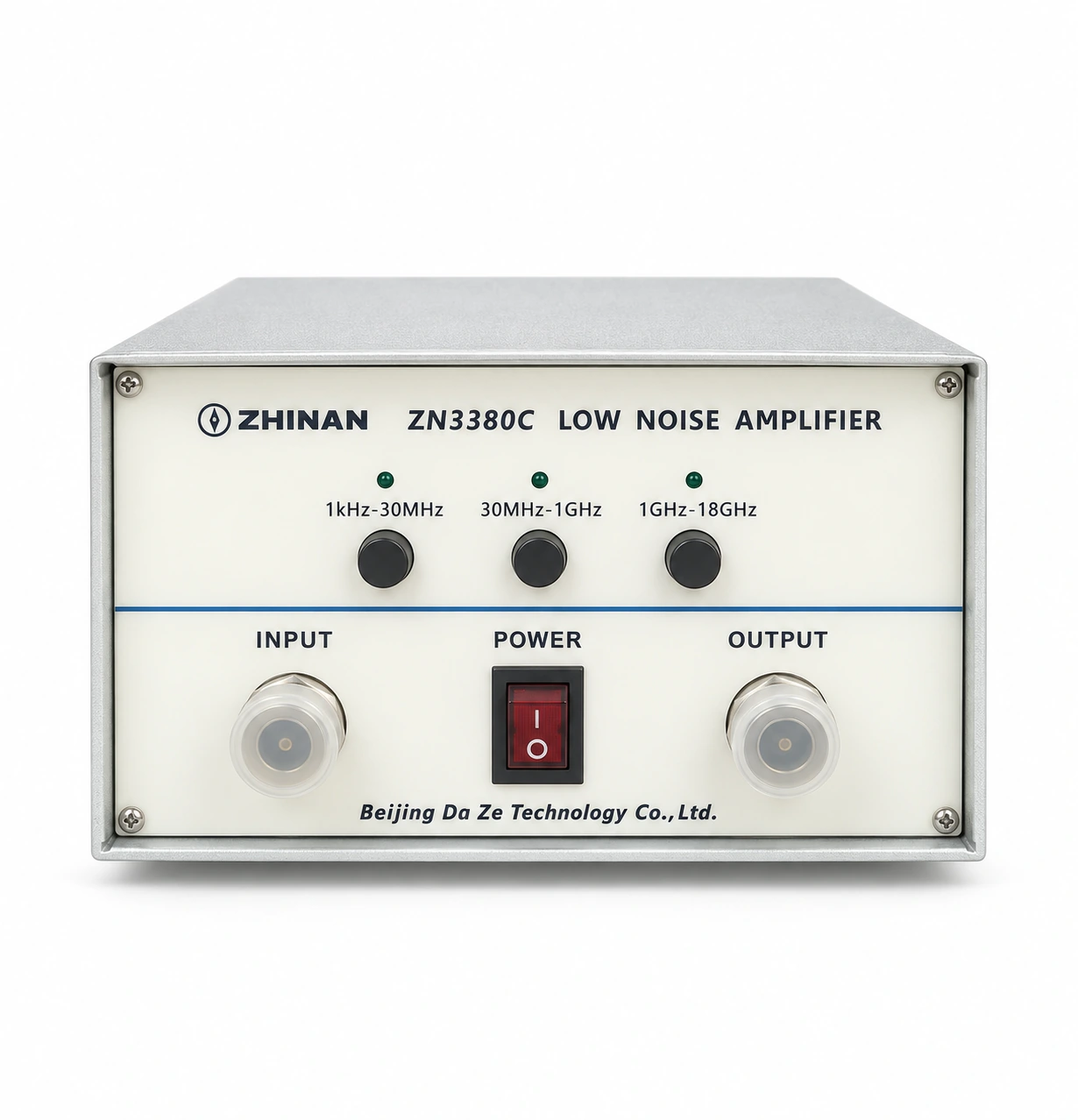

Low-Noise Preamplifier
Low-Noise Preamplifier with published frequency coverage of 1 kHz–18 GHz. It is intended for low-level radiated-emissions measurement and receiver sensitivity improvement and integration into complete EMC test chains.
CISPR 16 seriesCISPR 32MIL-STD-461H
1 kHz–18 GHzFrequency coverage
1 kHz-18 GHzFrequency range
-127 dBmMinimum measurable level
PRODUCT CAPABILITY
Designed around the measurement.
Designed for emi preamplifiers applications
Operating coverage: 1 kHz–18 GHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range1 kHz-18 GHz
Minimum measurable level-127 dBm
Gain28-30 dB
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3380C. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3380C used for?
ZN3380C is designed for Low-level signal measurement, Receiver sensitivity improvement, Radiated emissions. Its published frequency coverage is 1 kHz–18 GHz.
What frequency range does the ZN3380C cover?
The published frequency coverage is 1 kHz–18 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3380C?
This product is associated with CISPR 16 series, CISPR 32, MIL-STD-461H on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3380C?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
