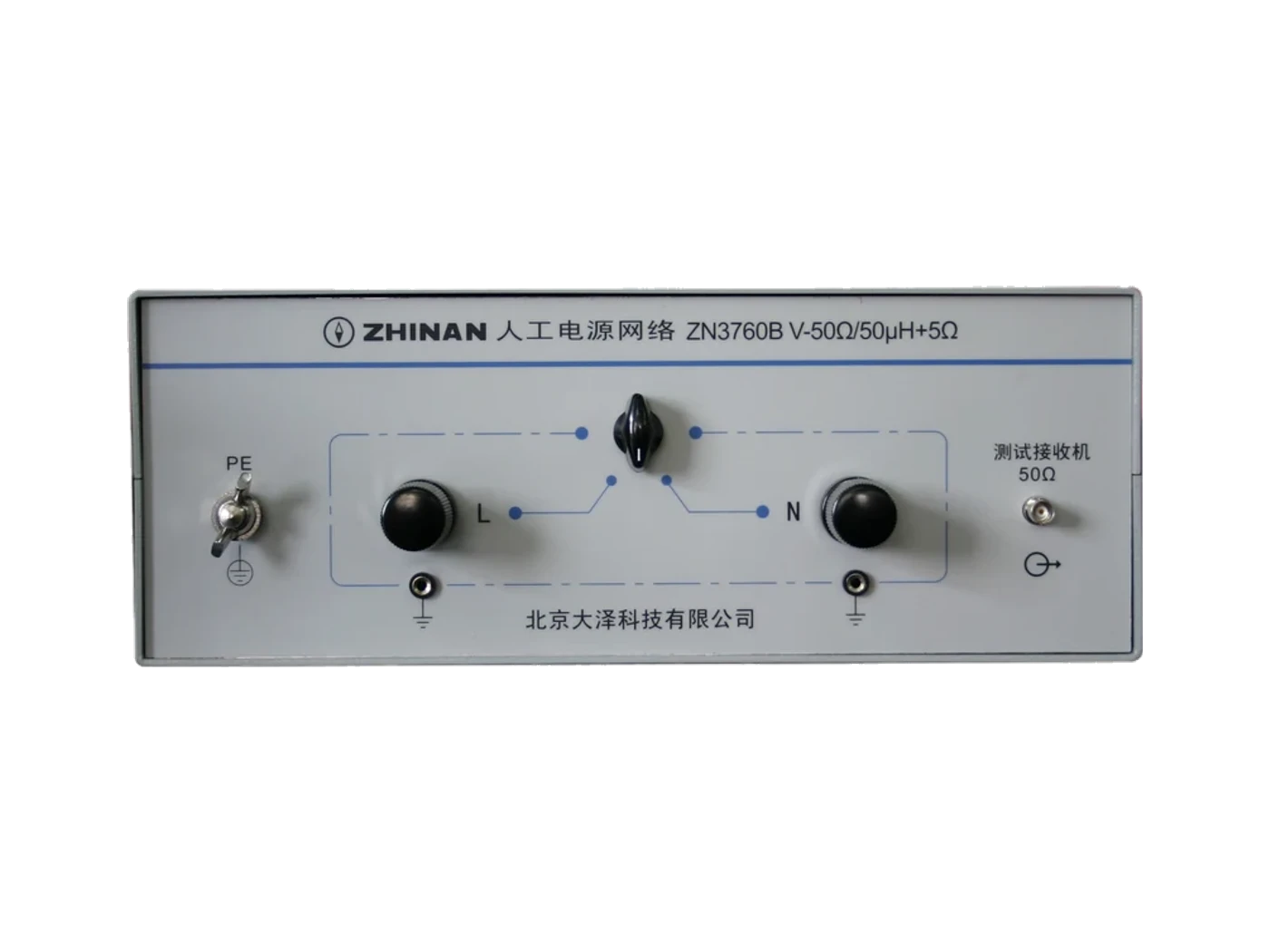

ARTIFICIAL MAINS NETWORKSZN3760B
V-Network LISN
V-Network LISN with published frequency coverage of 9 kHz–30 MHz. It is intended for conducted-emissions measurement and power-line impedance stabilization and integration into complete EMC test chains.
CISPR 16 seriesCISPR 32
9 kHz–30 MHzFrequency coverage
9 kHz-30 MHzFrequency range
20 ARated current
PRODUCT CAPABILITY
Designed around the measurement.
Designed for lisns & artificial mains networks applications
Operating coverage: 9 kHz–30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz-30 MHz
Rated current20 A
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3760B. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3760B used for?
ZN3760B is designed for Conducted emissions, Power-line stabilization, EMI receiver systems. Its published frequency coverage is 9 kHz–30 MHz.
What frequency range does the ZN3760B cover?
The published frequency coverage is 9 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3760B?
This product is associated with CISPR 16 series, CISPR 32 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3760B?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
