Product catalog

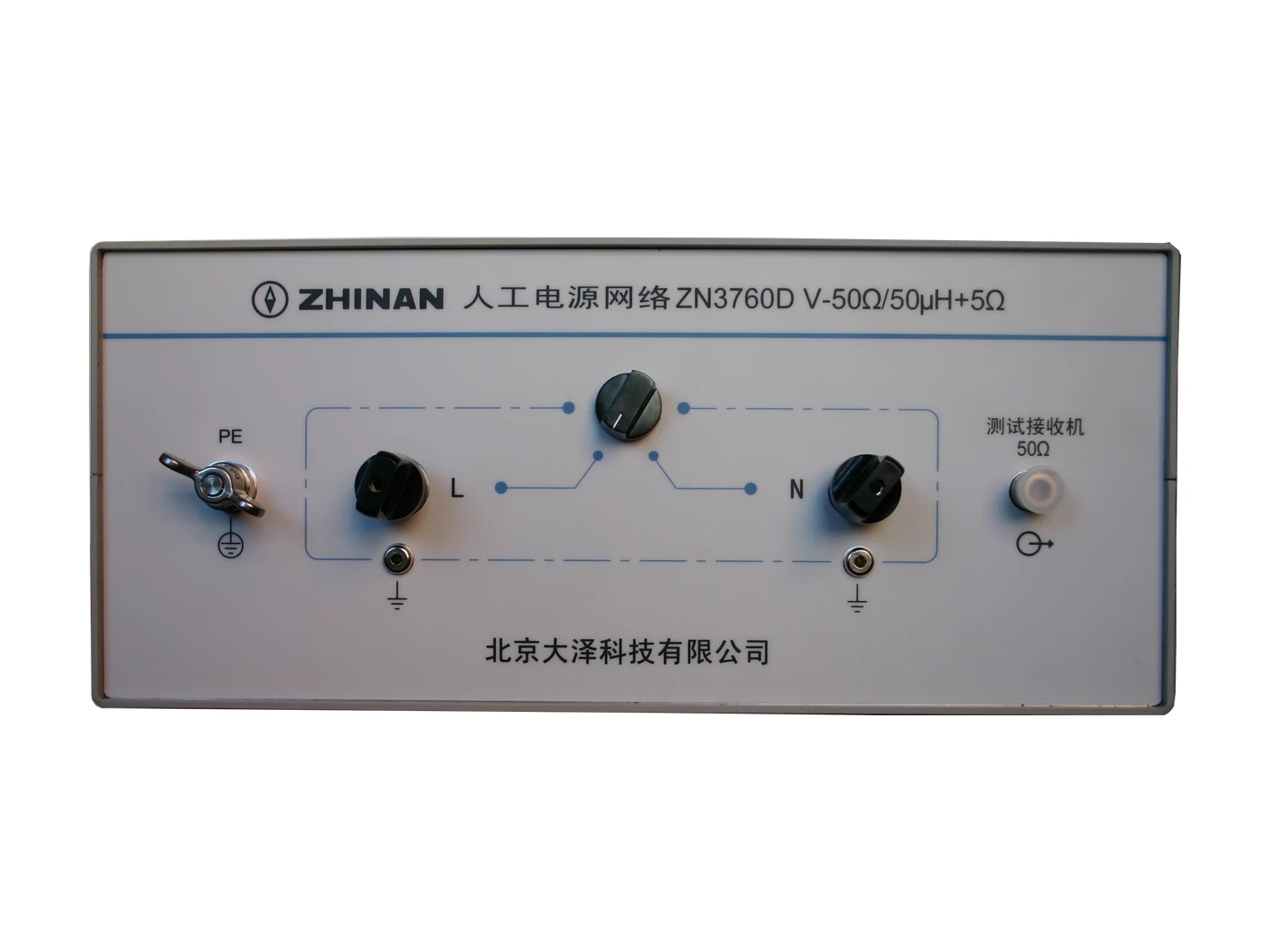

CONDUCTED EMISSIONSZN3760D
V-Network LISN
A V-network LISN providing a defined line impedance for conducted-emission measurements.
CISPR 16 seriesCISPR 32
9 kHz–30 MHzFrequency range
V-networkNetwork type
50 Ω / 50 μHNominal network
PRODUCT CAPABILITY
Designed around the measurement.
Defined impedance for repeatable conducted-emission measurements
Separates RF disturbance from the external power network
Measurement port for connection to an EMI receiver
Multiple current ratings available across the LISN family
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz–30 MHz
Network typeV-network LISN
Nominal network50 Ω / 50 μH + 5 Ω
Primary useConducted emission measurement
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3760D. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3760D used for?
ZN3760D is designed for Conducted emissions, Power-line testing, CISPR measurement. Its published frequency coverage is 9 kHz–30 MHz.
What frequency range does the ZN3760D cover?
The published frequency coverage is 9 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3760D?
This product is associated with CISPR 16 series, CISPR 32 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3760D?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
