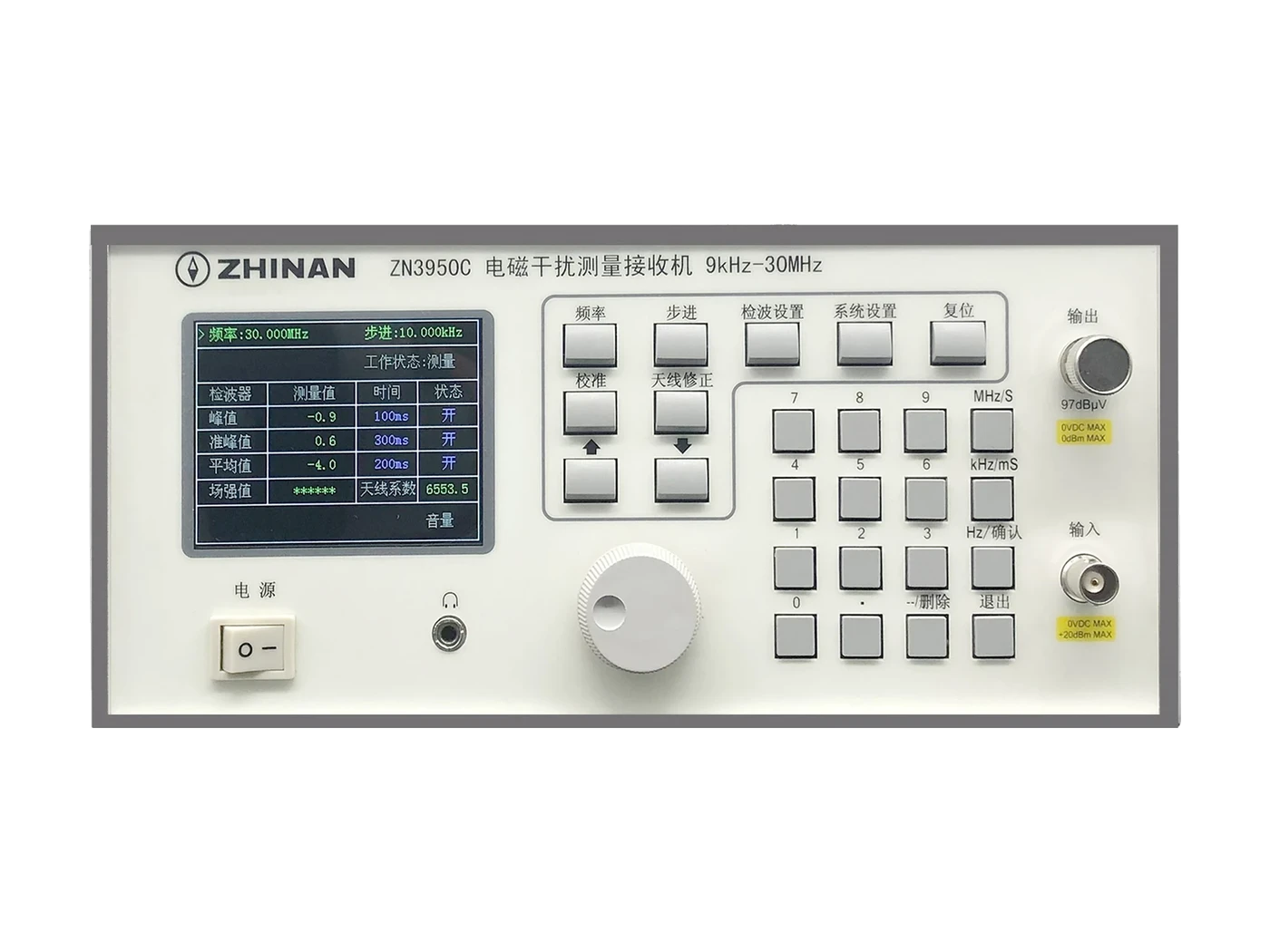

EMISSIONS MEASUREMENTZN3950C
EMI Test Receiver
EMI Test Receiver with published frequency coverage of 9 kHz–30 MHz. It is intended for conducted and radiated emissions measurement and integration into complete EMC test chains.
CISPR 16 seriesCISPR 32CISPR TR 18-2
9 kHz–30 MHzFrequency coverage
9 kHz-30 MHzFrequency range
10-110 dBμVVoltage measurement range
PRODUCT CAPABILITY
Designed around the measurement.
Designed for emi receivers applications
Operating coverage: 9 kHz–30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz-30 MHz
Voltage measurement range10-110 dBμV
Applicable standardCISPR-16
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3950C. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3950C used for?
ZN3950C is designed for Conducted emissions, Radiated emissions, Pre-compliance testing. Its published frequency coverage is 9 kHz–30 MHz.
What frequency range does the ZN3950C cover?
The published frequency coverage is 9 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3950C?
This product is associated with CISPR 16 series, CISPR 32, CISPR TR 18-2 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3950C?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
