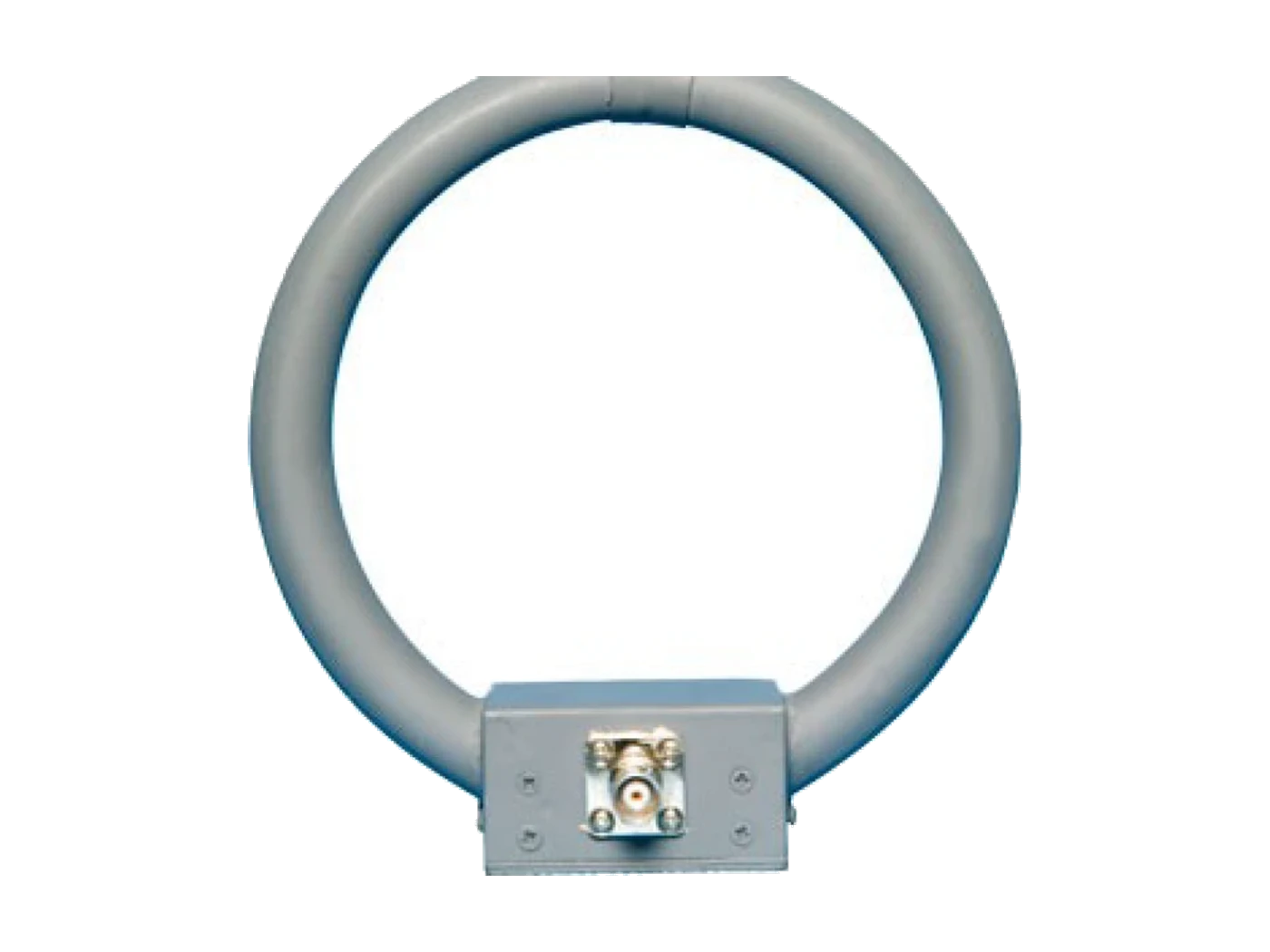

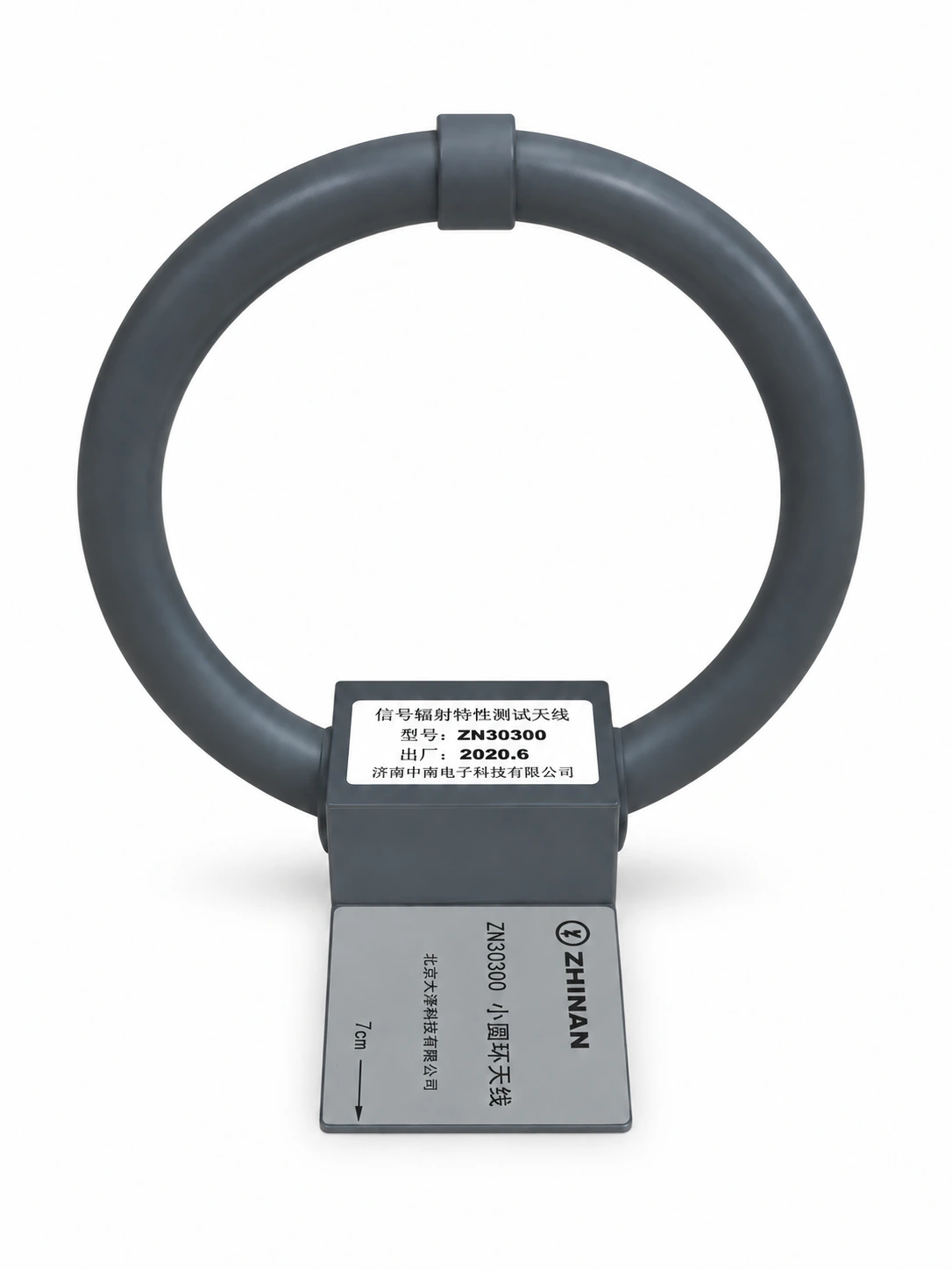

EMC TEST ANTENNASZN30300
Magnetic-Field Antenna
Magnetic-Field Antenna for test antennas applications across 10 Hz-1 MHz, designed for integration into laboratory and field EMC measurement chains.
MIL-STD-461H
10 Hz-1 MHzFrequency coverage
10 Hz-1 MHzFrequency range
50 ΩImpedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for test antennas applications
Operating coverage: 10 Hz-1 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range10 Hz-1 MHz
Impedance50 Ω
Inductance450 μH
WeightApprox. 300 g
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
