Measurement role
Confirm receive or transmit use, polarization, field level and working distance.
Product catalog

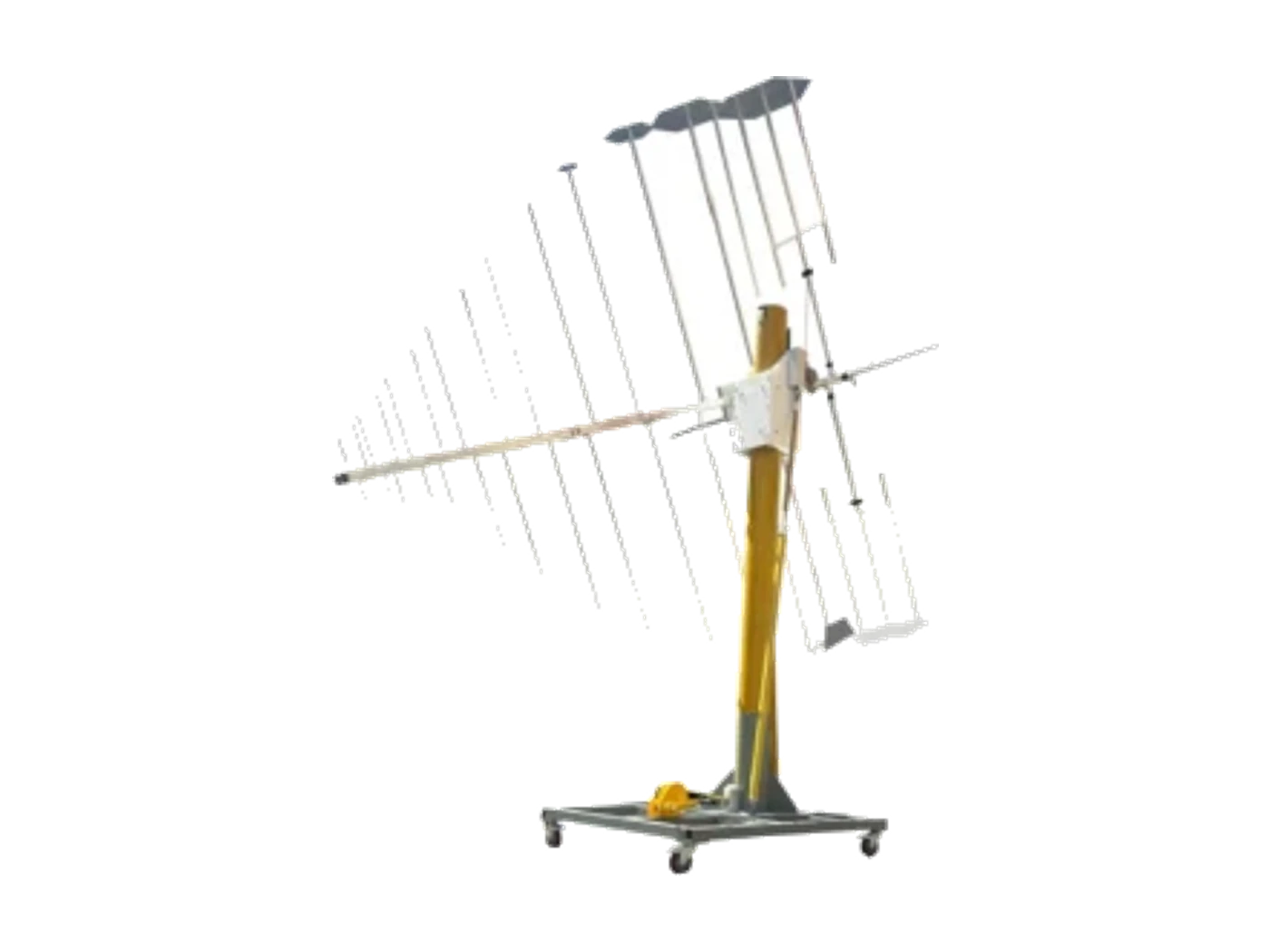

BROADBAND FIELD TESTINGZN30505L
Log-Periodic Antenna
A broadband antenna for radiated emission and immunity systems requiring stable field performance.
IEC 61000-4-3MIL-STD-461H
20–220 MHzFrequency range
BroadbandOperating mode
50 ΩNominal impedance
PRODUCT CAPABILITY
Designed around the measurement.
Broadband operation without frequent tuning
Suitable for receive and transmit measurement chains
Designed for laboratory and engineering test environments
System configuration support available for complete EMC chains
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range20 MHz–220 MHz
Nominal impedance50 Ω
Antenna typeLog-periodic
Primary useEmission and immunity testing
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30505L. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30505L used for?
ZN30505L is designed for Radiated emissions, Radiated immunity, Chamber testing. Its published frequency coverage is 20 MHz–220 MHz.
What frequency range does the ZN30505L cover?
The published frequency coverage is 20 MHz–220 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30505L?
This product is associated with IEC 61000-4-3, MIL-STD-461H on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30505L?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
