EMC TEST ANTENNASZN30503-2

Omnidirectional Antenna

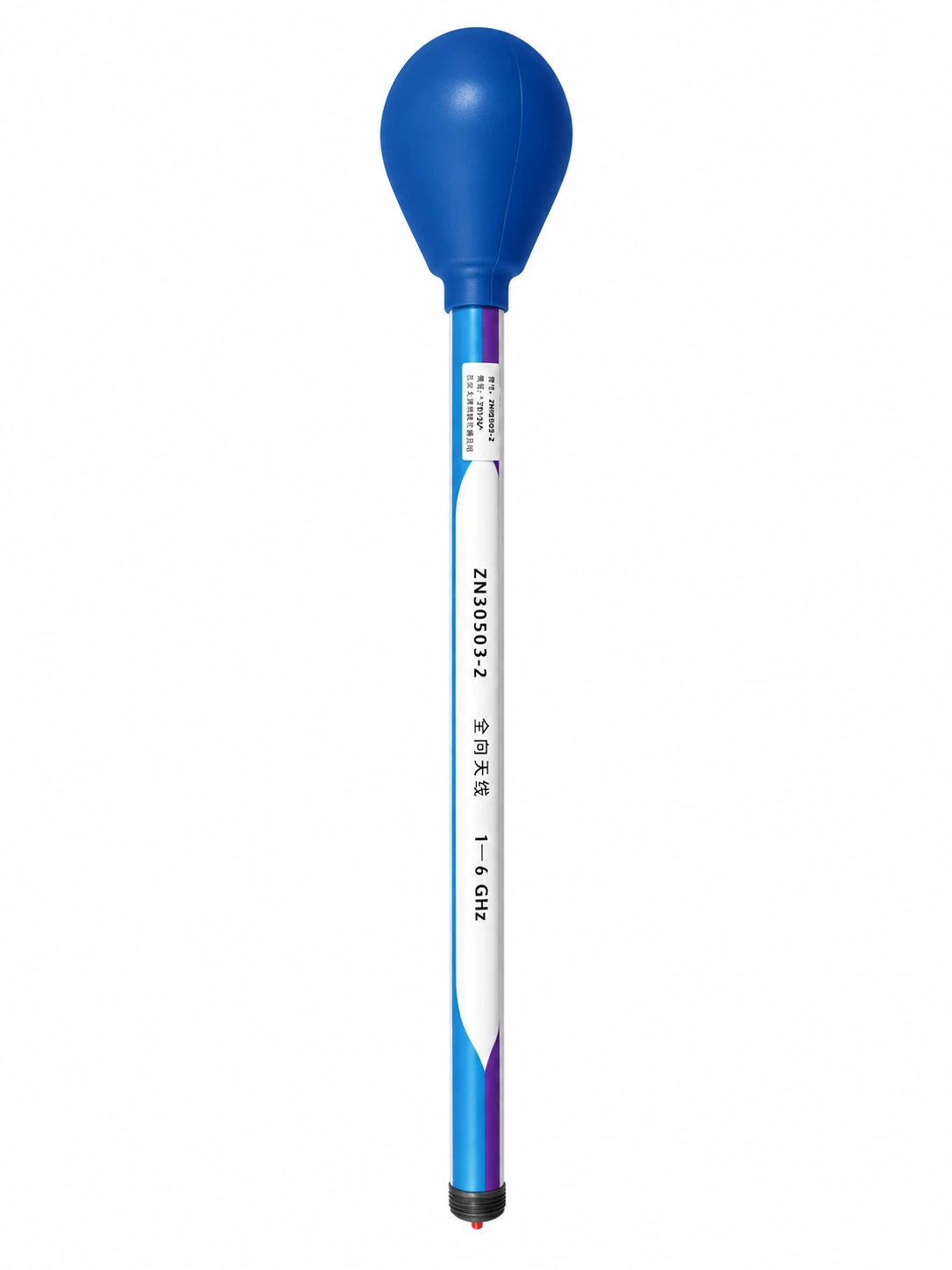

Omnidirectional Antenna with published frequency coverage of 1 GHz–6 GHz. It is intended for radiated-emissions measurement, immunity testing and field calibration and integration into complete EMC test chains.

CISPR 16 series

Request a quote Download datasheet

1 GHz–6 GHzFrequency coverage

1 GHz-6 GHzFrequency range

SMAConnector type

PRODUCT CAPABILITY

Designed around the measurement.

Designed for test antennas applications

Operating coverage: 1 GHz–6 GHz

Supports integration into complete EMC measurement and test chains

Technical configuration is matched to the applicable method, interfaces and required accessories

KEY SPECIFICATIONS

At a glance.

Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.

Frequency range1 GHz-6 GHz

Connector typeSMA

Maximum input power30 dBm

Antenna weight410 g

Need the complete technical data?Download the English datasheet.

Building a complete test chain?Share the standard, level and test object.

Contact ZHINAN

CONFIGURATION CHECKLIST

Make the quotation technically complete.

These are the points our application team will confirm before finalizing the model, accessories and calibration scope.

Measurement role

Confirm receive or transmit use, polarization, field level and working distance.

Mechanical setup

Plan the mast or tripod, adapters, cable routing and required orientation.

Calibration package

Confirm antenna-factor, gain or VSWR data and the required calibration scope.

PRODUCT QUESTIONS

What engineers ask before selection.

A concise starting point for evaluating ZN30503-2. The final model, accessories and calibration scope are confirmed against the complete test requirement.

What is the ZN30503-2 used for?

ZN30503-2 is designed for Radiated emissions, Radiated immunity, Field calibration. Its published frequency coverage is 1 GHz–6 GHz.

What frequency range does the ZN30503-2 cover?

The published frequency coverage is 1 GHz–6 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.

Which standards are associated with the ZN30503-2?

This product is associated with CISPR 16 series on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.

What information is needed to configure or quote the ZN30503-2?

Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
