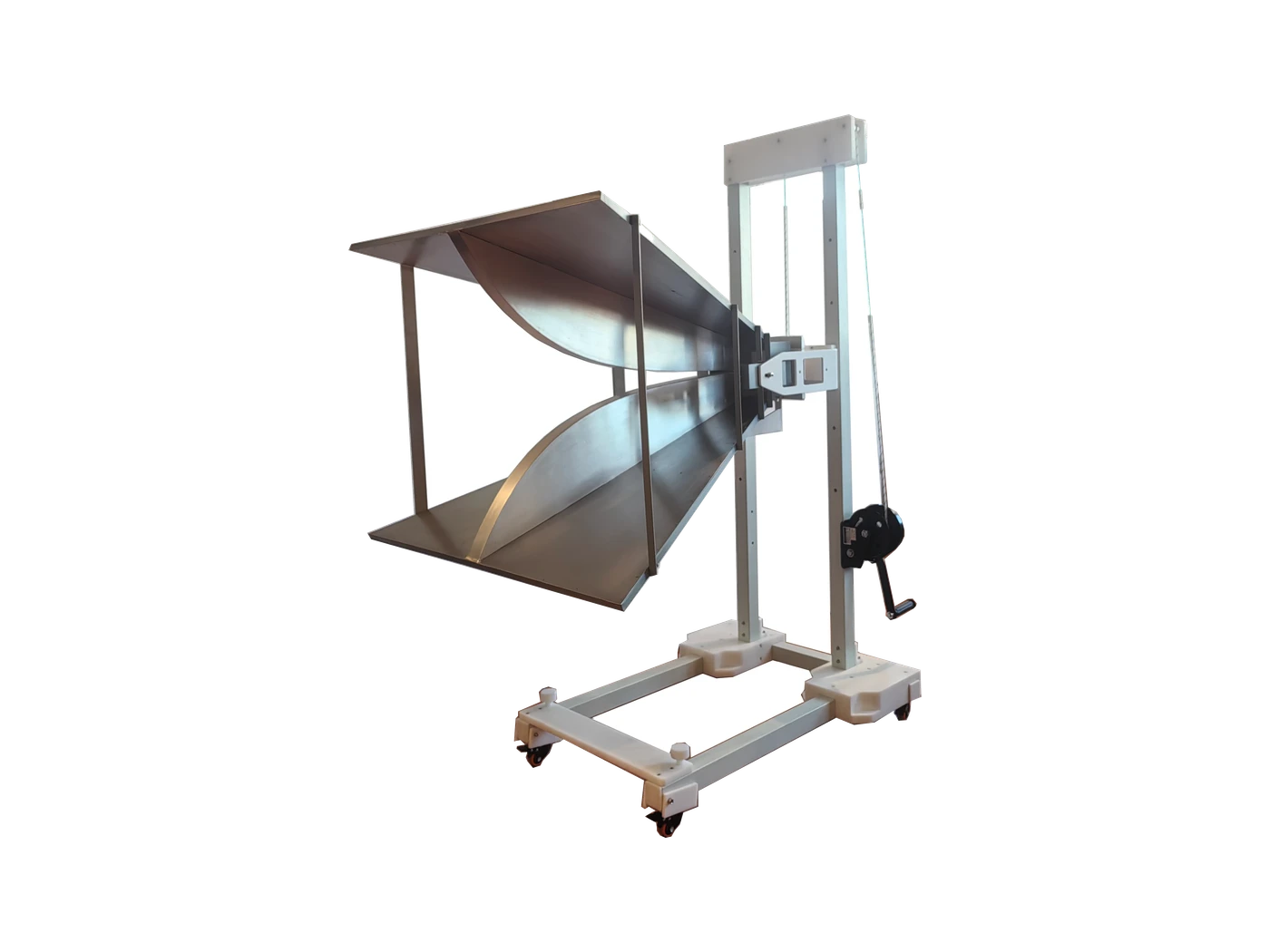

RE102 RECEIVE ANTENNASZN30505B-S
Broadband Double-Ridged Horn Receive Antenna
Broadband Double-Ridged Horn Receive Antenna for re102 receive antennas applications across 200 MHz–2 GHz, designed for integration into laboratory and field EMC measurement chains.
MIL-STD-461H
200 MHz–2 GHzFrequency coverage
200 MHz–2 GHzFrequency range
5–12 dBiGain
PRODUCT CAPABILITY
Designed around the measurement.
Designed for re102 receive antennas applications
Operating coverage: 200 MHz–2 GHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range200 MHz–2 GHz
Gain5–12 dBi
Net weightApprox. 13.7 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
