RE102 RECEIVE ANTENNASZN30800A

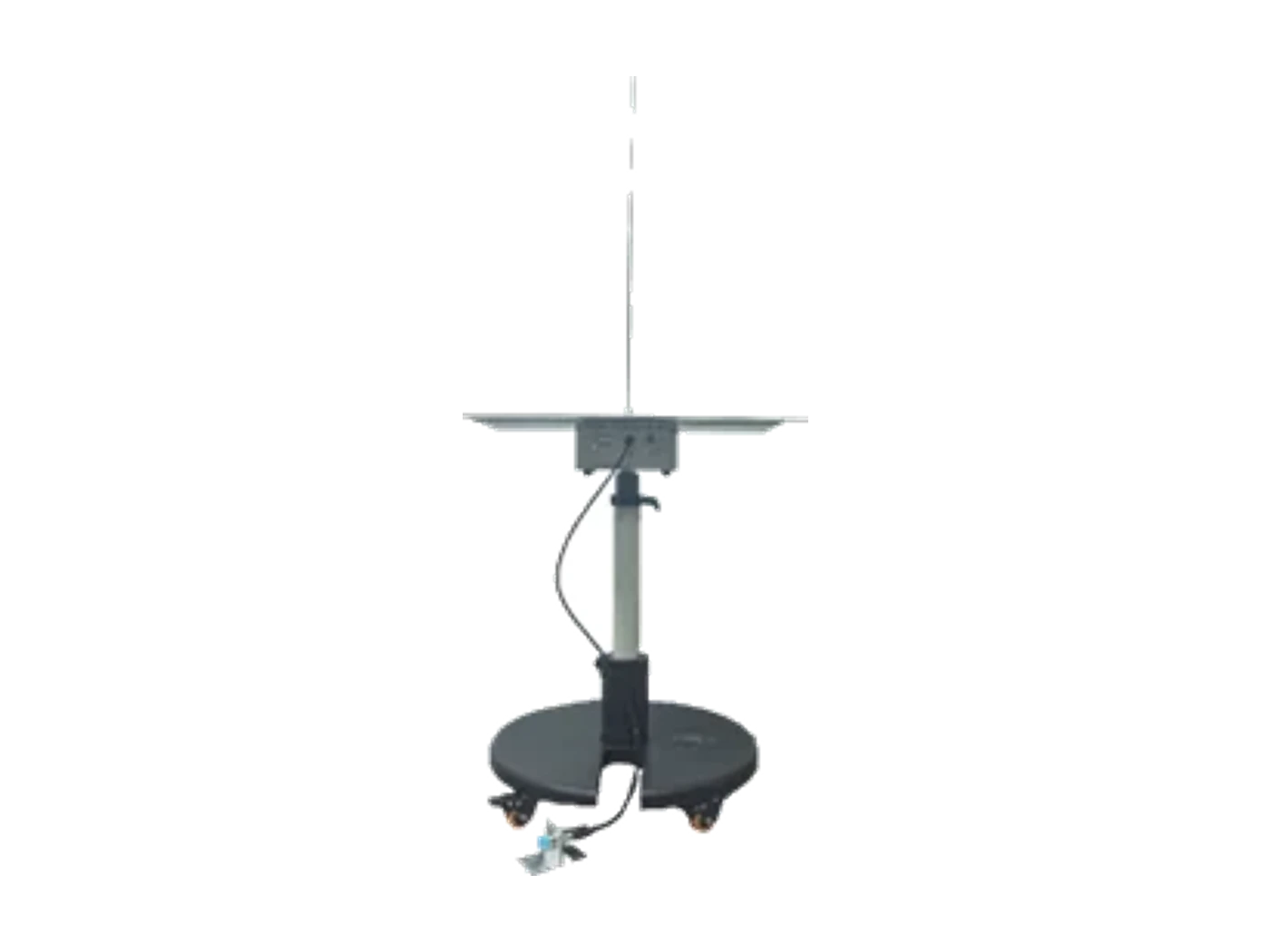

Active Rod Antenna
Active Rod Antenna with published frequency coverage of 9 kHz–30 MHz. It is intended for RE102 radiated-emissions measurement and integration into complete EMC test chains.
ISO 11452 series
9 kHz–30 MHzFrequency coverage
9 kHz–30 MHzFrequency range
< 1.5VSWR
PRODUCT CAPABILITY
Designed around the measurement.
Designed for re102 receive antennas applications
Operating coverage: 9 kHz–30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz–30 MHz
VSWR< 1.5
Antenna length1.04 m
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30800A. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30800A used for?
ZN30800A is designed for RE102 testing, Radiated emissions, Full-band receive systems. Its published frequency coverage is 9 kHz–30 MHz.
What frequency range does the ZN30800A cover?
The published frequency coverage is 9 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30800A?
This product is associated with ISO 11452 series on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30800A?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
