RS103 TRANSMIT ANTENNASZN30505K

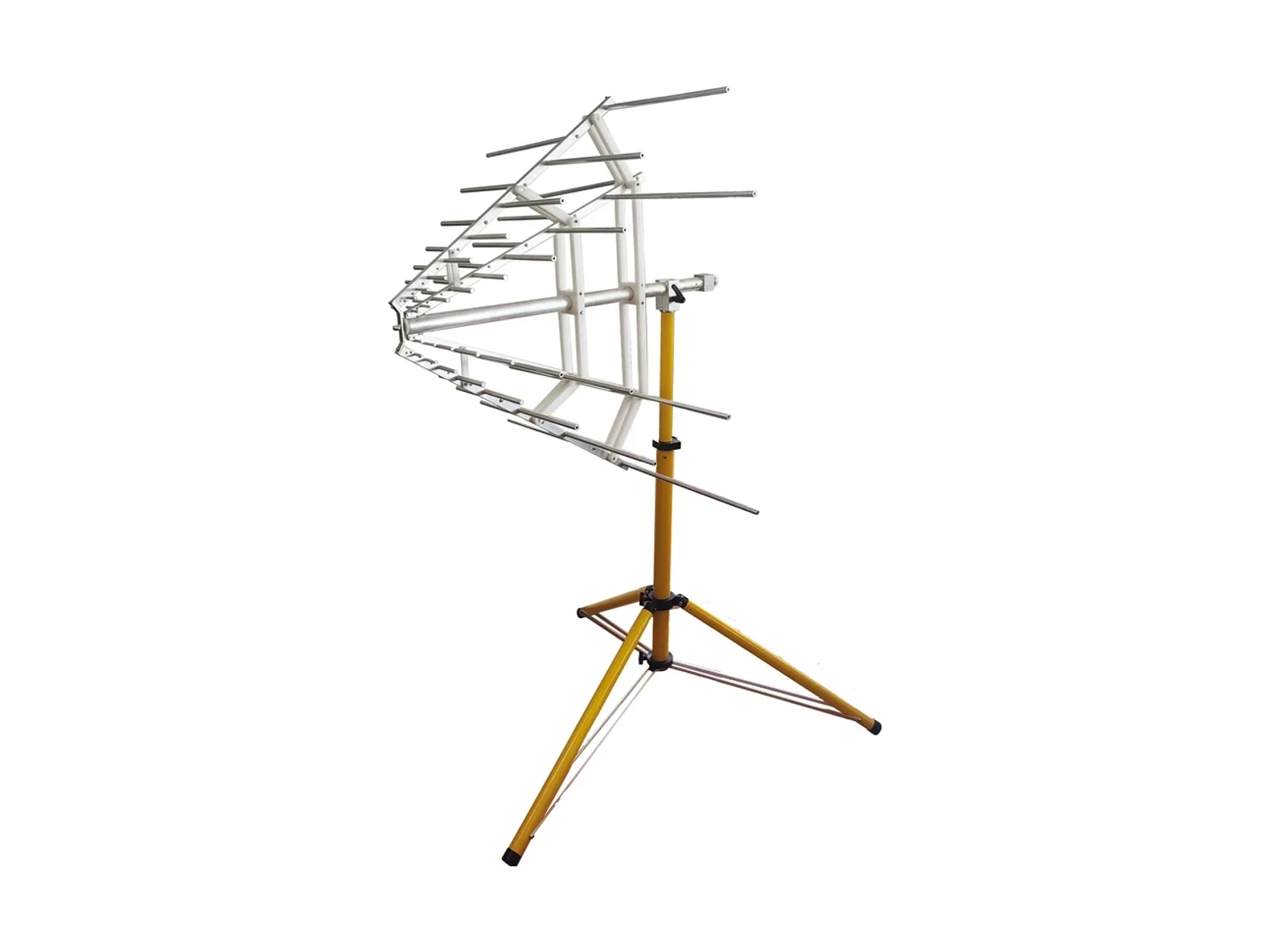

Stacked Log-Periodic Antenna
Stacked Log-Periodic Antenna with published frequency coverage of 150 MHz–1.5 GHz. It is intended for high-field RS103 radiated-susceptibility testing and integration into complete EMC test chains.
MIL-STD-461HISO 11452 series
150 MHz–1.5 GHzFrequency coverage
150 MHz–1.5 GHzFrequency range
> 30 dB（200 MHz–1.5 GHz）Cross-polarization rejection
PRODUCT CAPABILITY
Designed around the measurement.
Designed for rs103 transmit antennas applications
Operating coverage: 150 MHz–1.5 GHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 MHz–1.5 GHz
Cross-polarization rejection> 30 dB（200 MHz–1.5 GHz）
Front-to-back ratio> 16 dB
Average VSWR< 1.5
Maximum input power3000 W
Typical gain8 dBi
Antenna dimensions970 × 925 × 960 mm
WeightApprox. 6.7 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30505K. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30505K used for?
ZN30505K is designed for RS103 testing, High-field generation, Defense EMC. Its published frequency coverage is 150 MHz–1.5 GHz.
What frequency range does the ZN30505K cover?
The published frequency coverage is 150 MHz–1.5 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30505K?
This product is associated with MIL-STD-461H, ISO 11452 series on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30505K?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
