RS103 TRANSMIT ANTENNASZN30505M

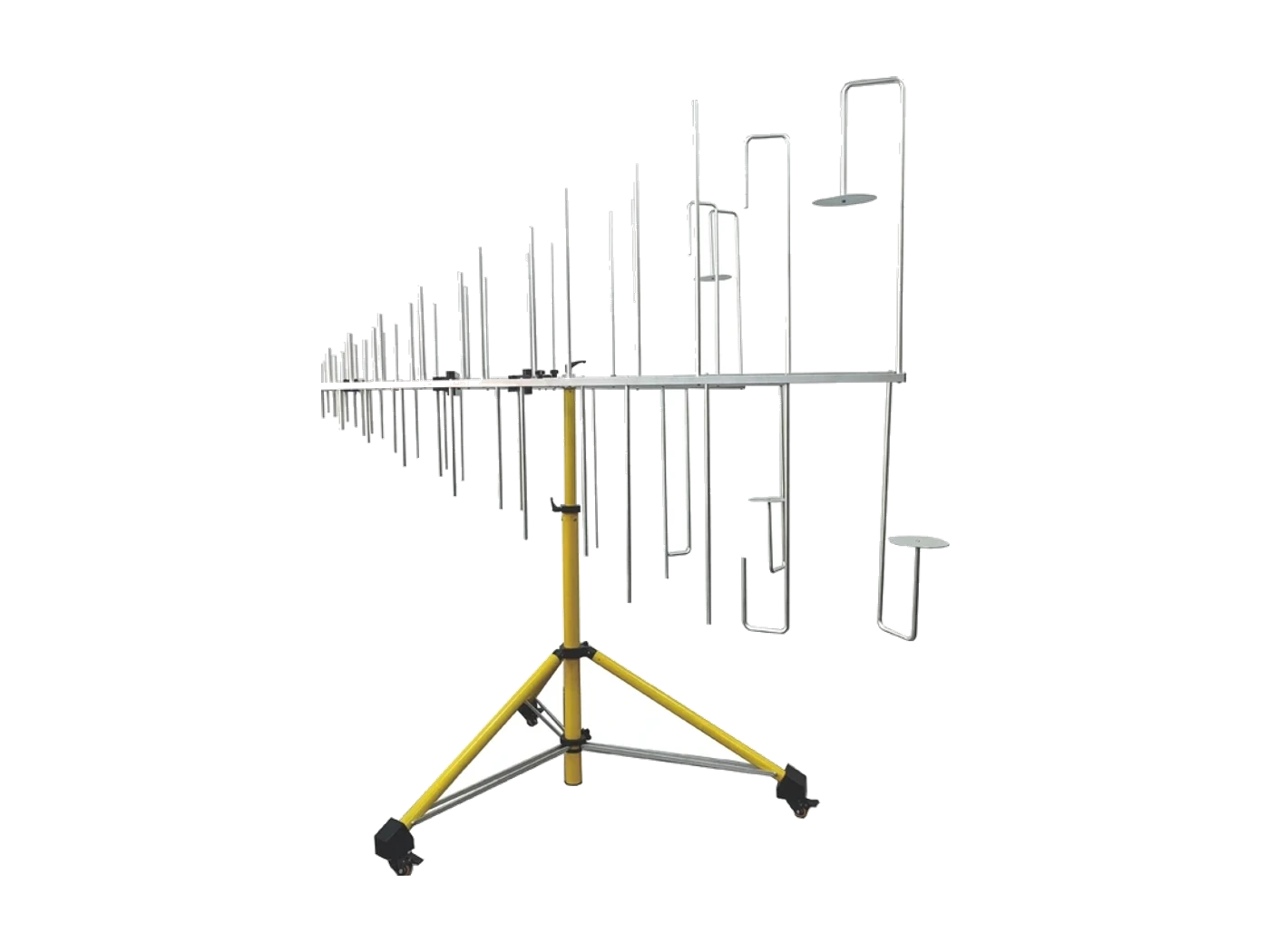

Stacked Log-Periodic Broadband Antenna
A stacked log-periodic antenna covering 80 MHz-1.5 GHz for high-field radiated-immunity testing.
MIL-STD-461HISO 11452 series
80 MHz–1.5 GHzFrequency coverage
80 MHz–1.5 GHzFrequency range
50 Ω, N / 7/16Impedance
PRODUCT CAPABILITY
Designed around the measurement.
Frequency range: 80 MHz–1.5 GHz
Impedance: 50 Ω, N / 7/16
Average VSWR: < 1.5
Weight: 12 kg
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range80 MHz–1.5 GHz
Impedance50 Ω, N / 7/16
Average VSWR< 1.5
Weight12 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30505M. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30505M used for?
ZN30505M is designed for RS103 testing, High-field generation, Defense EMC. Its published frequency coverage is 80 MHz–1.5 GHz.
What frequency range does the ZN30505M cover?
The published frequency coverage is 80 MHz–1.5 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30505M?
This product is associated with MIL-STD-461H, ISO 11452 series on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30505M?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
