EMC TEST ANTENNASZN30901

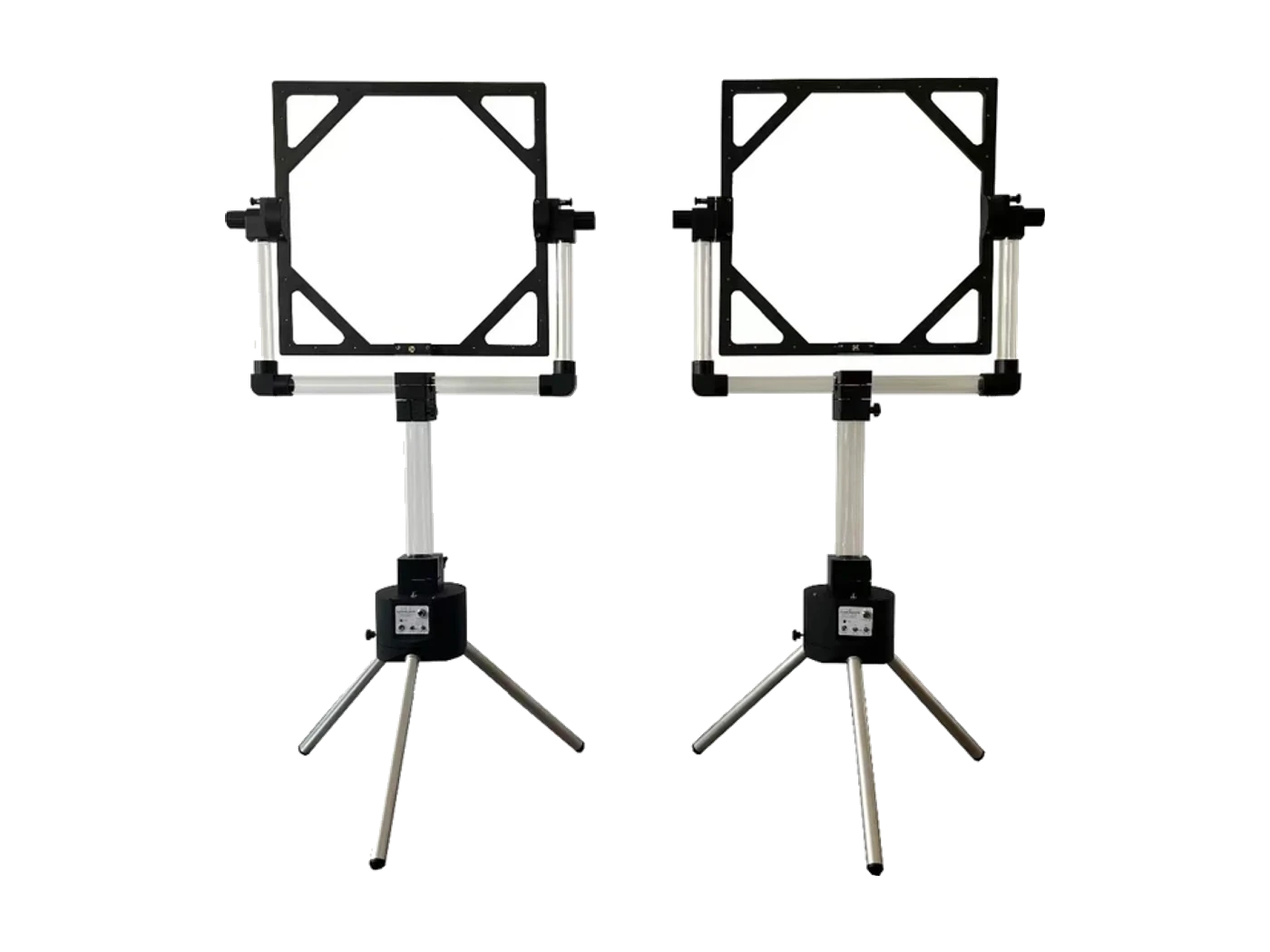

Site-Validation Loop Antenna Test System
Site-Validation Loop Antenna Test System with published frequency coverage of 9 kHz–30 MHz. It is intended for radiated-emissions measurement, immunity testing and field calibration and integration into complete EMC test chains.
CISPR 16 seriesCISPR 32
9 kHz–30 MHzFrequency coverage
9 kHz-30 MHzFrequency range
30 dBReceive preamplifier gain
PRODUCT CAPABILITY
Designed around the measurement.
Designed for test antennas applications
Operating coverage: 9 kHz–30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz-30 MHz
Receive preamplifier gain30 dB
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30901. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30901 used for?
ZN30901 is designed for Radiated emissions, Radiated immunity, Field calibration. Its published frequency coverage is 9 kHz–30 MHz.
What frequency range does the ZN30901 cover?
The published frequency coverage is 9 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30901?
This product is associated with CISPR 16 series, CISPR 32 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30901?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
