EMC TEST ANTENNASZN30600A

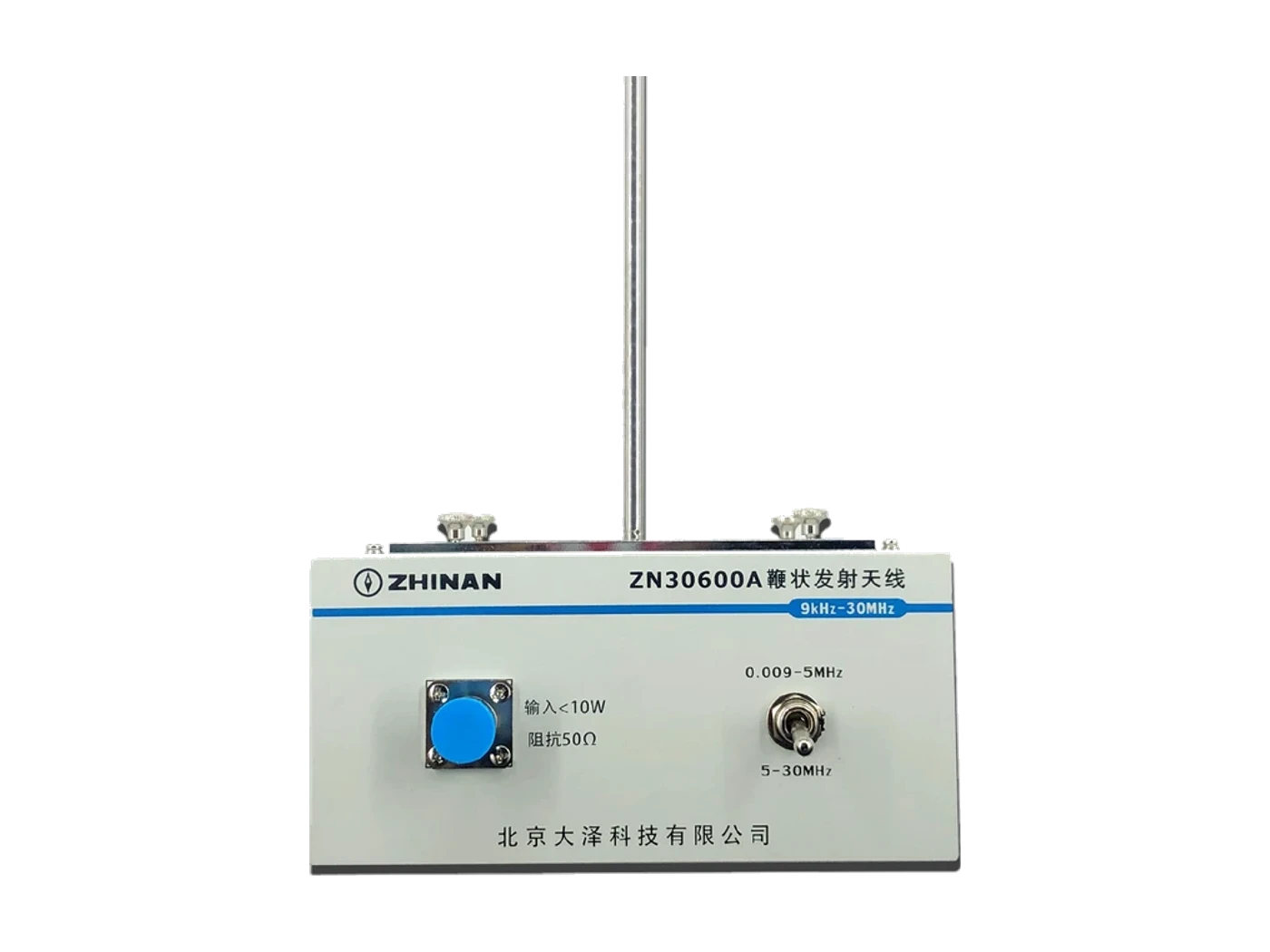

Rod Transmit Antenna
Rod Transmit Antenna with published frequency coverage of 10 kHz-30 MHz. It is intended for radiated-emissions measurement, immunity testing and field calibration and integration into complete EMC test chains.
IEEE 299
10 kHz-30 MHzFrequency coverage
10 kHz-30 MHzFrequency range
≤10 WInput power
PRODUCT CAPABILITY
Designed around the measurement.
Designed for test antennas applications
Operating coverage: 10 kHz-30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range10 kHz-30 MHz
Input power≤10 W
Operating temperature-10 ℃-+50 ℃
WeightApprox. 3 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Mechanical setup
Plan the mast or tripod, adapters, cable routing and required orientation.
Calibration package
Confirm antenna-factor, gain or VSWR data and the required calibration scope.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN30600A. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN30600A used for?
ZN30600A is designed for Radiated emissions, Radiated immunity, Field calibration. Its published frequency coverage is 10 kHz-30 MHz.
What frequency range does the ZN30600A cover?
The published frequency coverage is 10 kHz-30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN30600A?
This product is associated with IEEE 299 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN30600A?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
