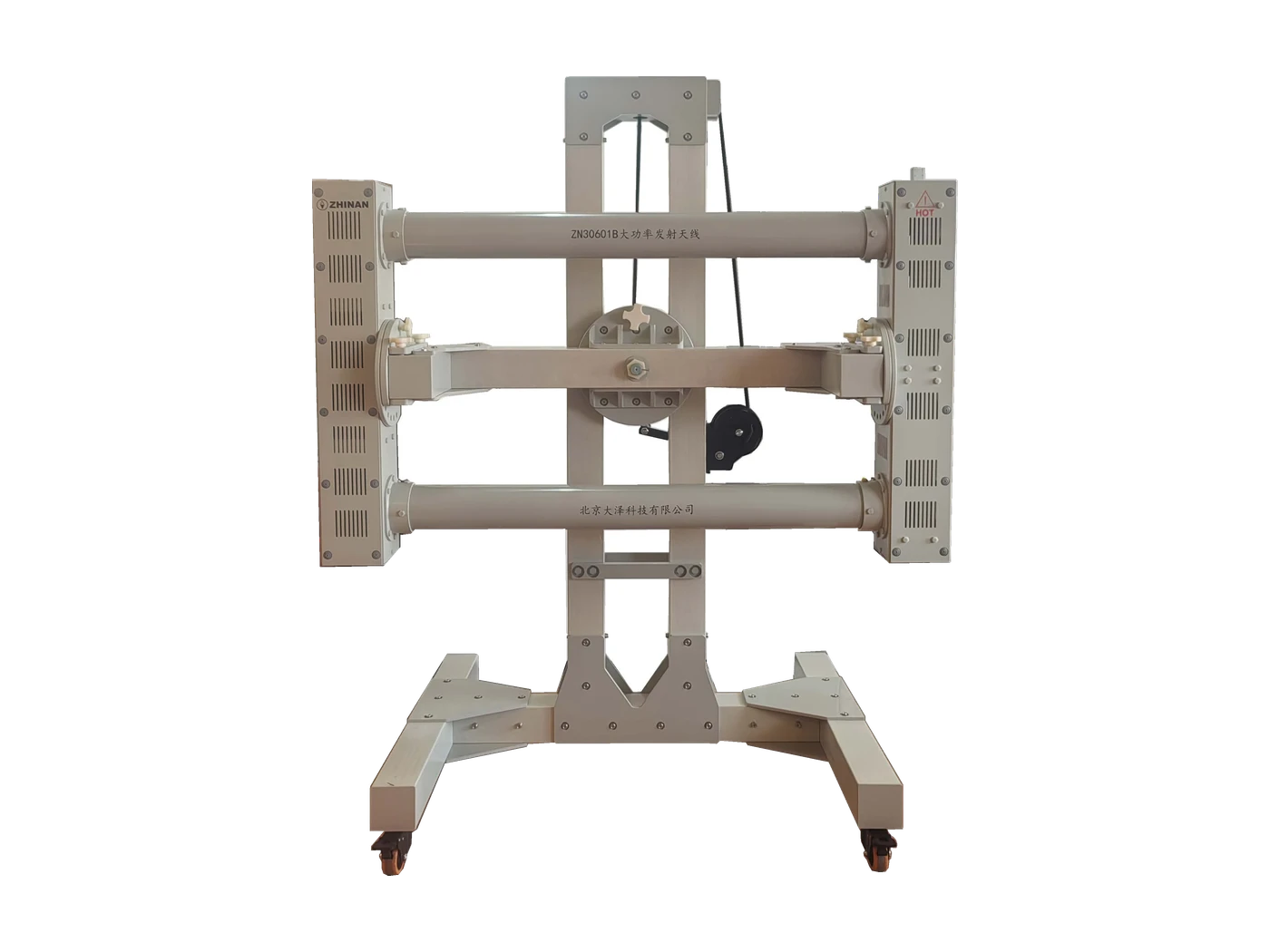

RS103 TRANSMIT ANTENNAZN30601B
Low-Frequency High-Power Transmit Antenna
A high-power transmitting antenna developed for low-frequency radiated susceptibility test systems.
MIL-STD-461H / RS103
10 kHz–100 MHzFrequency range
High powerTransmit capability
RS103Primary test role
PRODUCT CAPABILITY
Designed around the measurement.
Extended low-frequency coverage for demanding immunity systems
Engineered for high-power transmit chains
Supports complete RS103 antenna-system configurations
Mechanical and RF integration support available
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range10 kHz–100 MHz
Antenna roleHigh-power transmission
System impedance50 Ω
Primary standardMIL-STD-461H / RS103
