ARTIFICIAL MAINS NETWORKSZN3770A

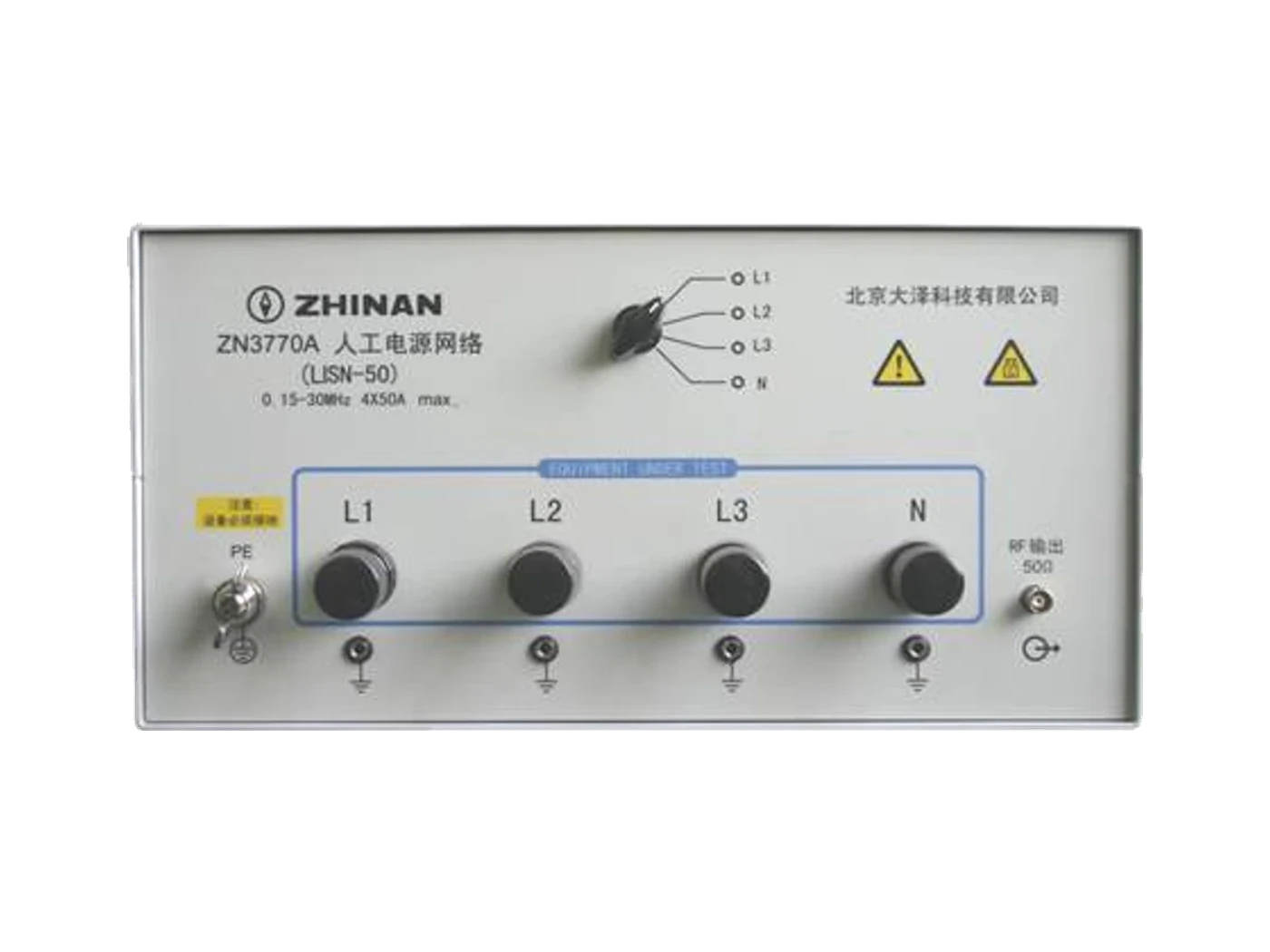

Artificial Mains Network
Artificial Mains Network for lisns & artificial mains networks applications across 150 kHz-30 MHz, designed for integration into laboratory and field EMC measurement chains.
CISPR 16 seriesCISPR 32
150 kHz-30 MHzFrequency coverage
150 kHz-30 MHzFrequency range
50 Ω / 50 μHNetwork impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for lisns & artificial mains networks applications
Operating coverage: 150 kHz-30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz-30 MHz
Network impedance50 Ω / 50 μH
Rated current4 × 50 A
RF outputBNC，50 Ω
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
RELATED EQUIPMENT
Browse this product family
