ARTIFICIAL MAINS NETWORKSZN3791

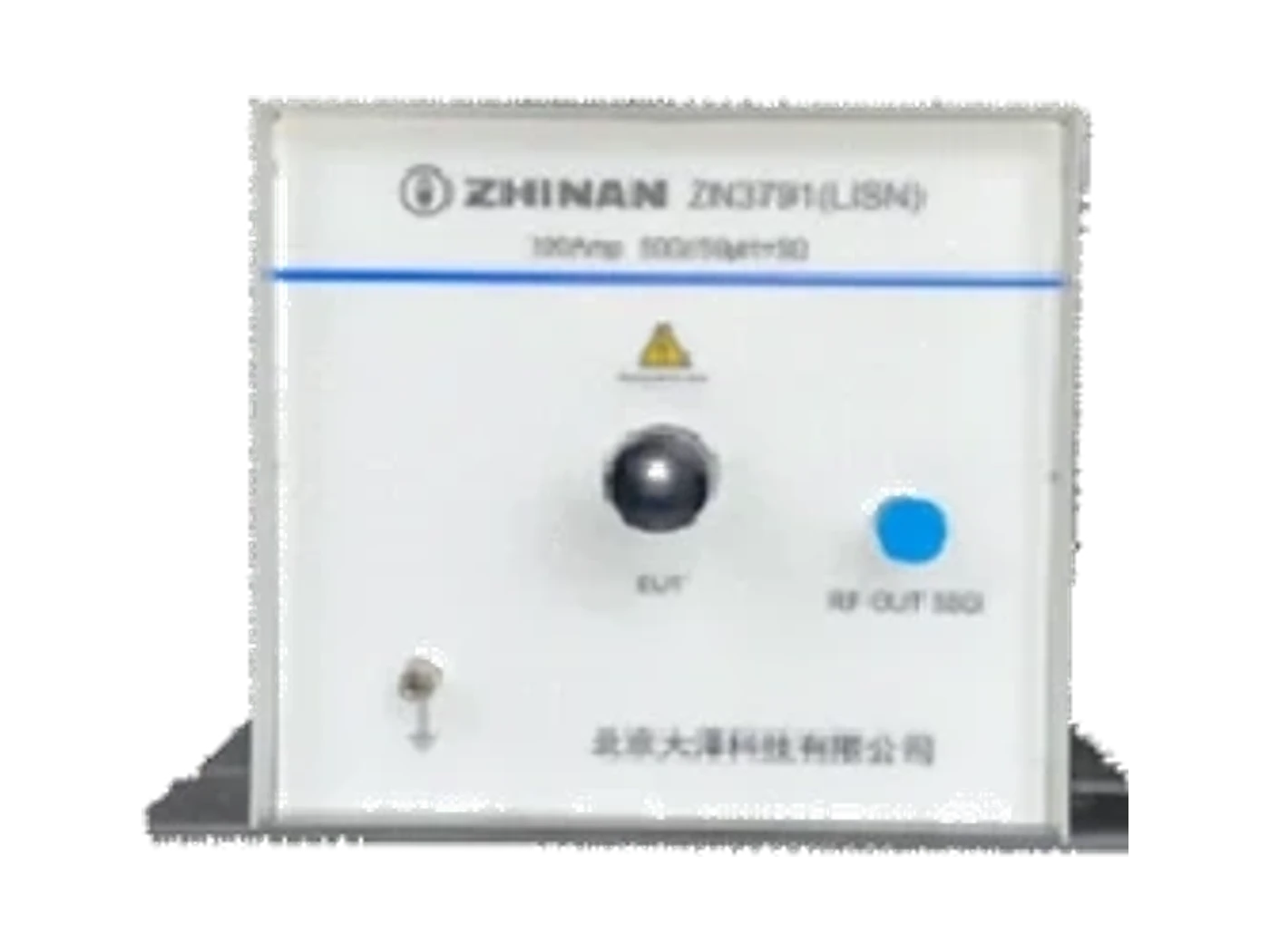

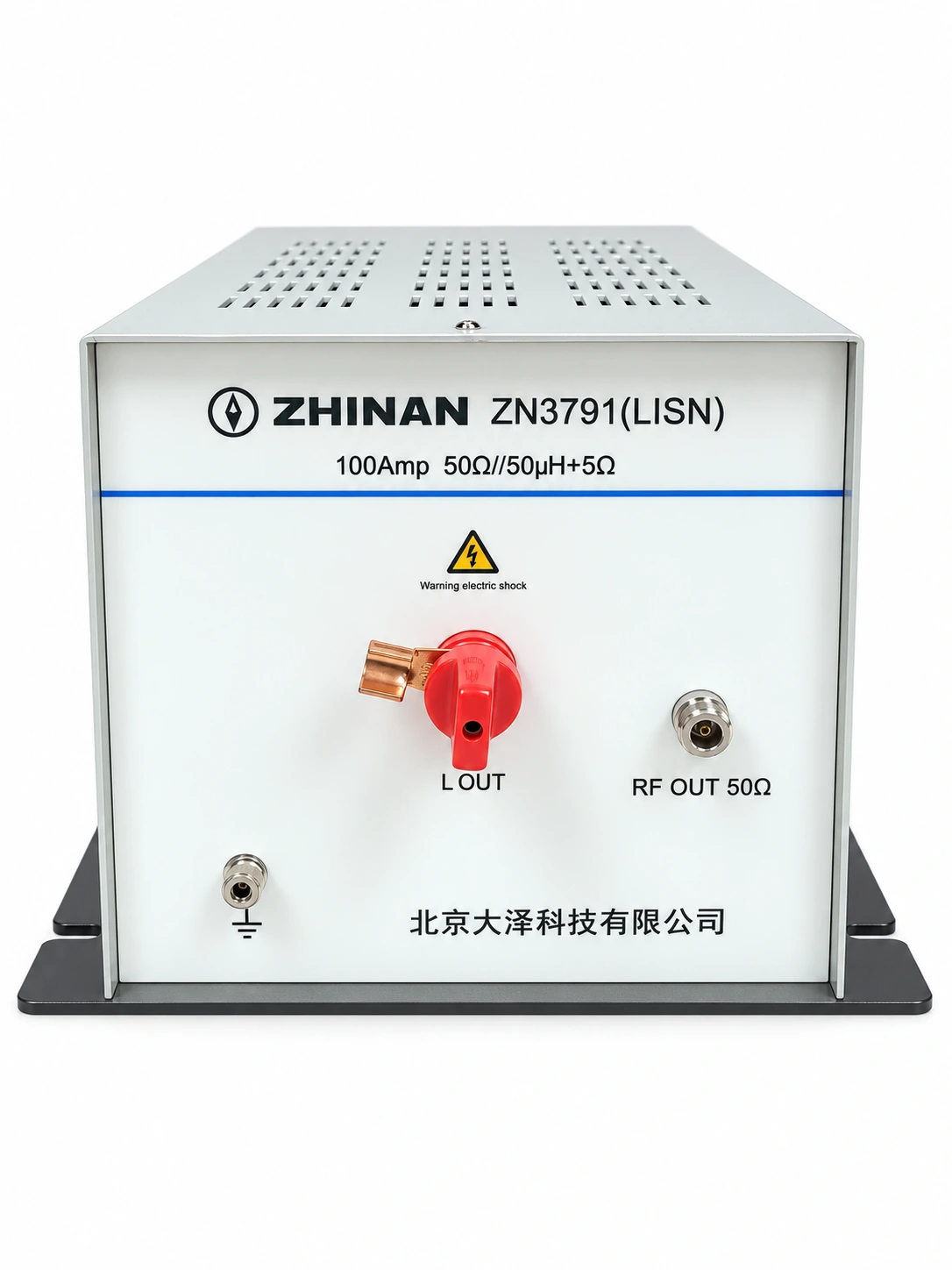

100 A Line Impedance Stabilization Network
100 A Line Impedance Stabilization Network with published frequency coverage of 10 kHz–10 MHz. It is intended for conducted-emissions measurement and power-line impedance stabilization and integration into complete EMC test chains.
MIL-STD-461H
10 kHz–10 MHzFrequency coverage
10 kHz-10 MHzFrequency range
50Ω/50μH + 5ΩNetwork impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for lisns & artificial mains networks applications
Operating coverage: 10 kHz–10 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range10 kHz-10 MHz
Network impedance50Ω/50μH + 5Ω
Maximum operating current100 A
Operating voltageAC 400 V / DC 1000 V
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
