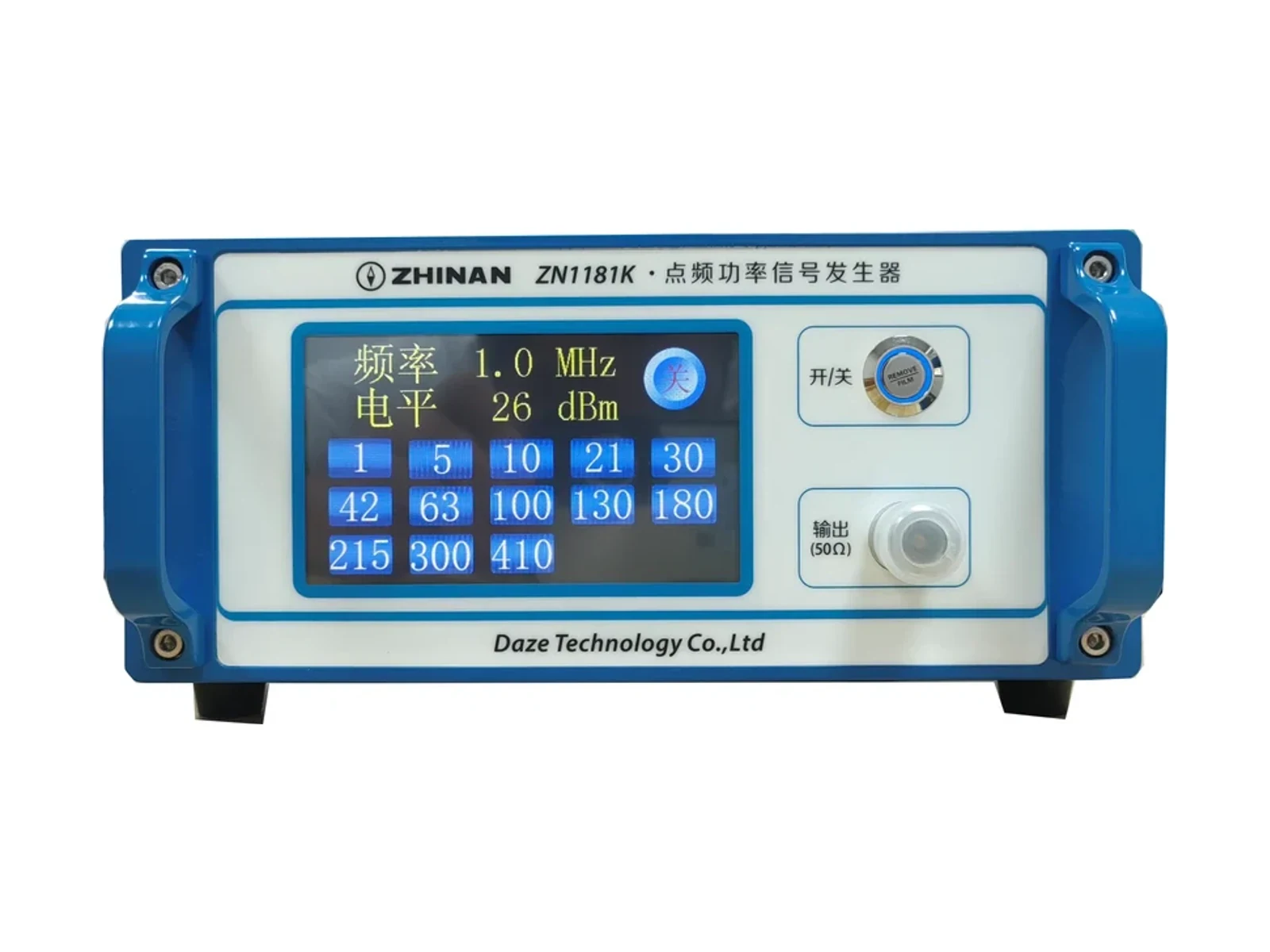

SHIELDING TEST SYSTEMSZN1181K
Fixed-Frequency Power Signal Source
Fixed-Frequency Power Signal Source with published frequency coverage of 1 MHz-410 MHz. It is intended for shielded-room, enclosure and material attenuation measurements and integration into complete EMC test chains.
IEEE 299
1 MHz-410 MHzFrequency coverage
1 / 5 / 10 / 21 / 30 / 42 / 63 / 100 / 130 / 180 / 215 / 300 / 410 MHzFrequency points
±1×10^-5Frequency stability
PRODUCT CAPABILITY
Designed around the measurement.
Designed for shielding effectiveness applications
Operating coverage: 1 MHz-410 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency points1 / 5 / 10 / 21 / 30 / 42 / 63 / 100 / 130 / 180 / 215 / 300 / 410 MHz
Frequency stability±1×10^-5
Output impedance50Ω ±5%
Power supply220 V ±10%，50 Hz ±2 Hz
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN1181K. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN1181K used for?
ZN1181K is designed for Shielded rooms and enclosures, Acceptance testing, Leakage diagnostics. Its published frequency coverage is 1 MHz-410 MHz.
What frequency range does the ZN1181K cover?
The published frequency coverage is 1 MHz-410 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN1181K?
This product is associated with IEEE 299 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN1181K?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
