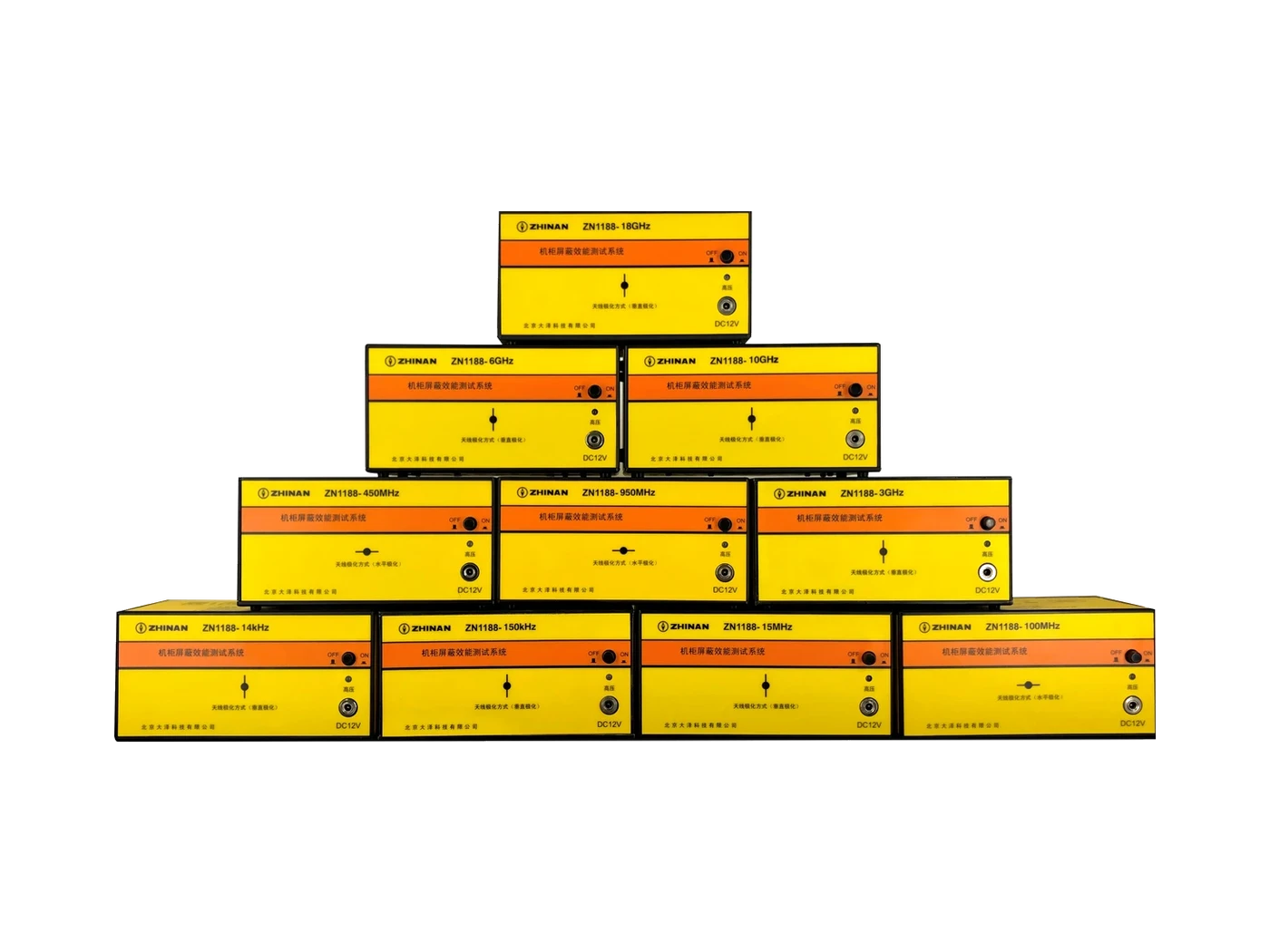

COMPACT ENCLOSURE TESTINGZN1188
Compact Enclosure Shielding Test System
A multi-frequency system with built-in radiating sources for design verification, production acceptance and leakage-path troubleshooting.
IEEE 299
14 kHz–39.5 GHzFrequency coverage
16 pointsDiscrete test frequencies
Built-inRadiating source
PRODUCT CAPABILITY
Designed around the measurement.
Fast setup without a separate external transmitting chain
Coverage from low-frequency magnetic field to millimeter wave
Designed for cabinets, boxes and compact shielded structures
Useful for comparing materials, seams, filters and design revisions
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range14 kHz–39.5 GHz
Test methodMulti-frequency built-in radiation source
Test objectCabinets, boxes and compact enclosures
Minimum test volume300 × 300 × 300 mm
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN1188. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN1188 used for?
ZN1188 is designed for Shielding boxes, Electronic cabinets, Design validation. Its published frequency coverage is 14 kHz–39.5 GHz.
What frequency range does the ZN1188 cover?
The published frequency coverage is 14 kHz–39.5 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN1188?
This product is associated with IEEE 299 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN1188?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
