FULL-RANGE TEST PLATFORMZN1183A

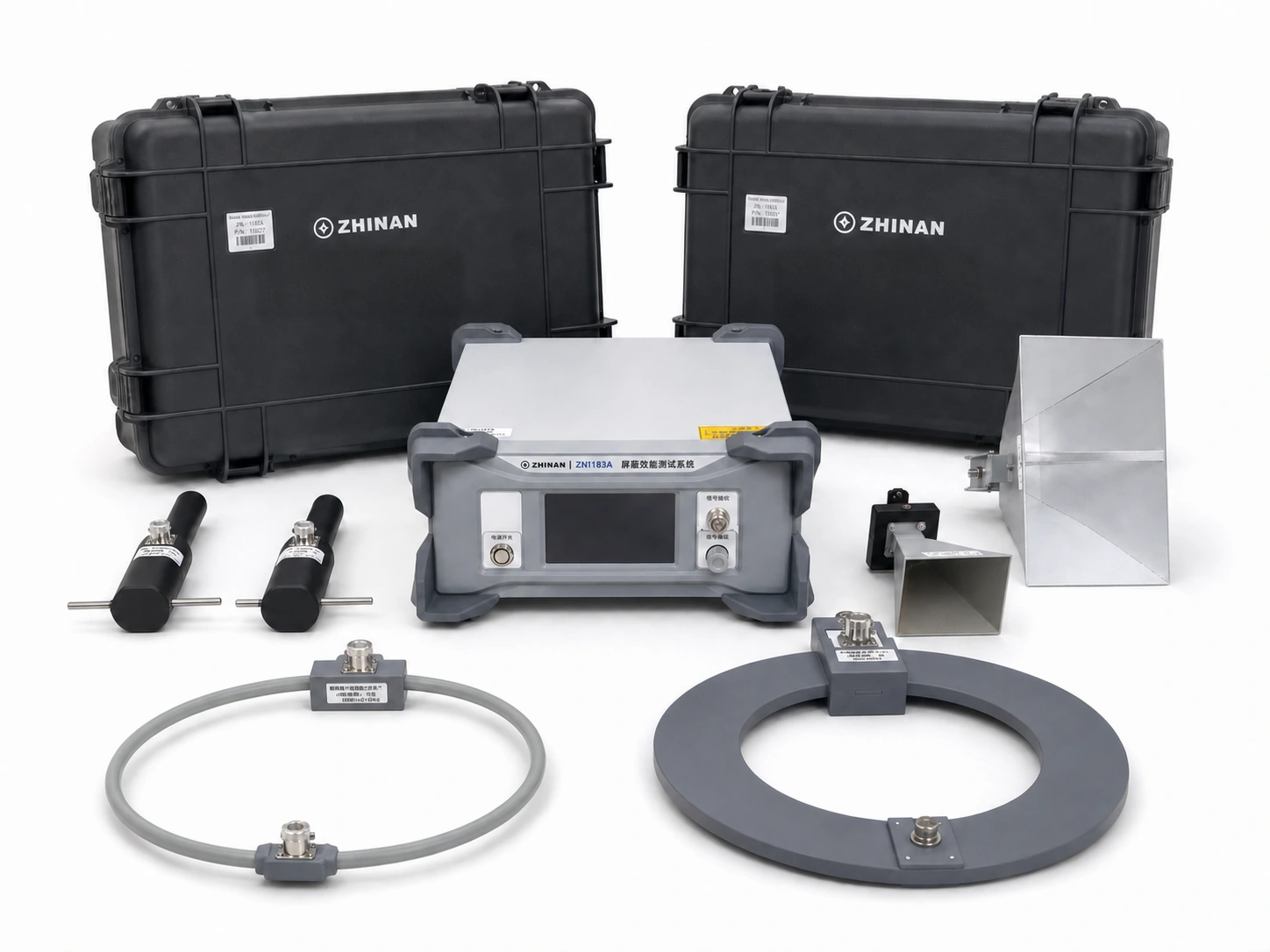

Shielding Effectiveness Test System
A phase-locked synthesized power source with matched transmit/receive antennas for shielding effectiveness testing from 9 kHz to 20 GHz. Supports AC mains and external 12 V batteries for laboratory and field measurements.
IEEE 299
9 kHz–20 GHzFrequency coverage
≥100 dBμVReceiver level
18 monthsStandard warranty
PRODUCT CAPABILITY
Designed around the measurement.

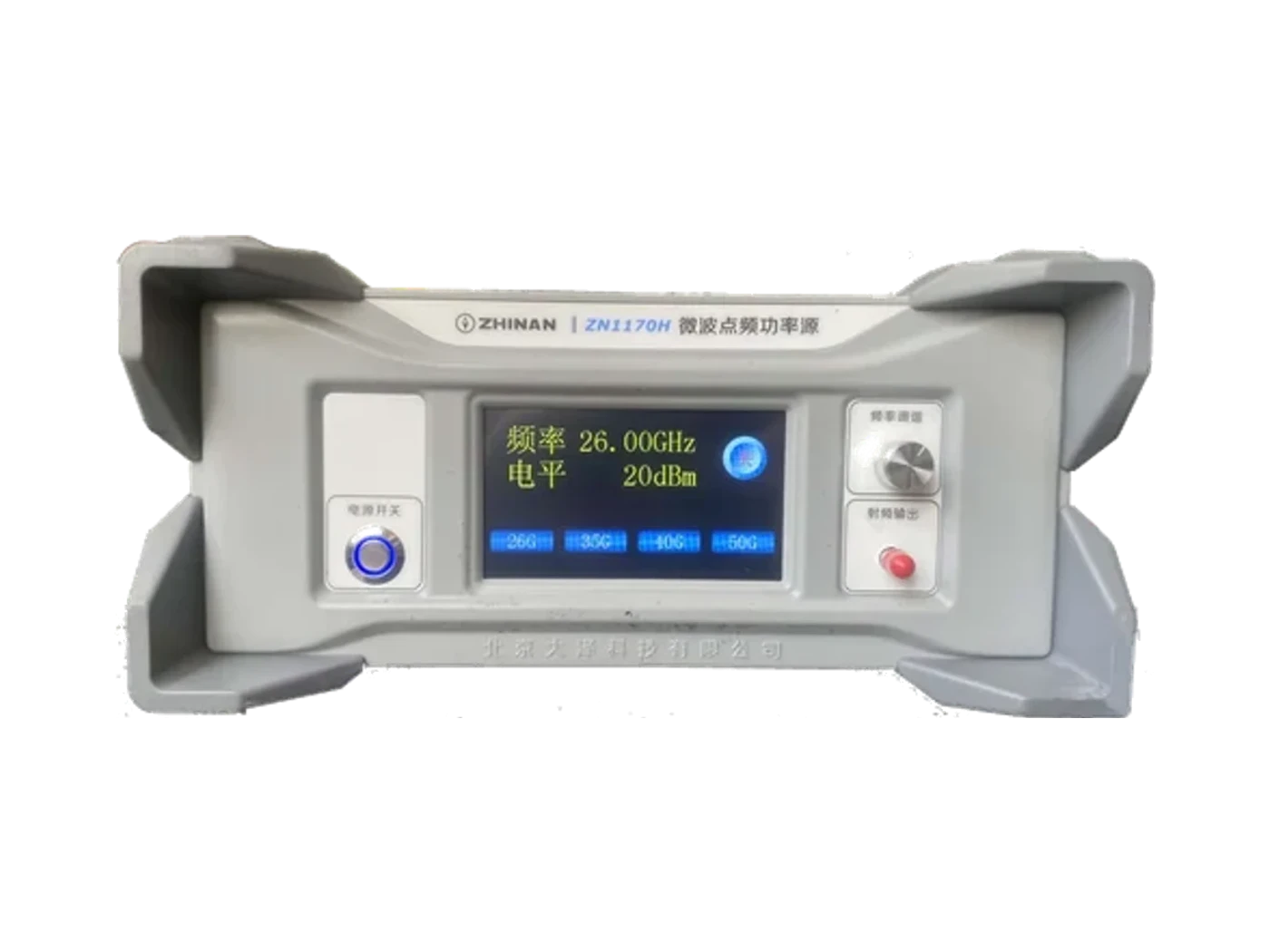

Phase-locked synthesized power source with a color LCD touchscreen
≥16 dBm output from 9 kHz to 18 GHz; ≥10 dBm from 18 to 20 GHz
AC mains or external 12 V batteries; more than 1 hour of continuous DC operation
Matched loop, dipole and horn antenna pairs, RF cables, tripods and rechargeable batteries
Two transport cases, each 826 × 532 × 332 mm; approx. 25 kg and 24 kg
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range9 kHz-20 GHz
Frequency stability5 × 10^-8
Frequency accuracy±1% (9 kHz - 1 GHz); ±0.01% (1 GHz - 20 GHz)
Output level≥16 dBm (9 kHz-18 GHz); ≥10 dBm (18-20 GHz)
Output impedance / connector50 Ω / N-type
Display and controlsColor LCD touchscreen
AC supply90-240 V, 50/60 Hz, 2 A fuse
DC supply / runtimeExternal 12 V battery; continuous operation >1 hour
Power consumptionApprox. 60 W
Main unit size / weight310 × 150 × 380 mm; approx. 5 kg
Main unit + accessories case826 × 532 × 332 mm; approx. 25 kg
Accessory case826 × 532 × 332 mm; approx. 24 kg
Operating conditions0-40°C; 20%-90% RH at 40°C; 86-106 kPa
Warm-upMore than 10 minutes before measurement
Standard warranty18 months
Received level at specified antenna distances
All 13 test frequencies from the manual. Warm up for more than 10 minutes before measurement.
14 kHz · 60 cm≥100 dBμV
100 kHz · 60 cm≥100 dBμV
200 kHz · 60 cm≥100 dBμV
1 MHz · 60 cm≥100 dBμV
15 MHz · 60 cm≥100 dBμV
100 MHz · 200 cm≥100 dBμV
450 MHz · 200 cm≥100 dBμV
950 MHz · 200 cm≥100 dBμV
1.5 GHz · 200 cm≥100 dBμV
3 GHz · 200 cm≥100 dBμV
6 GHz · 200 cm≥100 dBμV
10 GHz · 200 cm≥100 dBμV
18 GHz · 200 cm≥100 dBμV
Frequency steps
9 kHz-100 kHz1 kHz
100 kHz-1 MHz10 kHz
1 MHz-10 MHz100 kHz
10 MHz-1 GHz1 MHz
1 GHz-10 GHz10 MHz
10 GHz-20 GHz100 MHz
Standard kit
Loop antennasOne TX/RX pair for 14 / 100 / 200 kHz and 1 MHz; one TX/RX pair for 15 MHz
Dipoles and elementsOne TX/RX pair each for 100 MHz and 950 MHz; two pairs of 100 MHz elements; two pairs of 450 MHz elements for the 950 MHz dipoles
Horn antennasOne TX/RX pair of large horns (1-10 GHz); one TX/RX pair of small horns (10-20 GHz)
RF cablesTwo 2 m N-N low-loss cables; two 5 m N-J5-N-J5 cables
Supports and measuring toolsTwo tripods; one tape measure; four rulers
Power and documentationOne AC cord; two rechargeable batteries; one DC cord; one charger; one manual
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN1183A. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN1183A used for?
ZN1183A is designed for Shielded rooms, Equipment cabinets, Shielded shelters. Its published frequency coverage is 9 kHz–20 GHz.
What frequency range does the ZN1183A cover?
The published frequency coverage is 9 kHz–20 GHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN1183A?
This product is associated with IEEE 299 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN1183A?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
