BCI TEST CHAINZN23101E

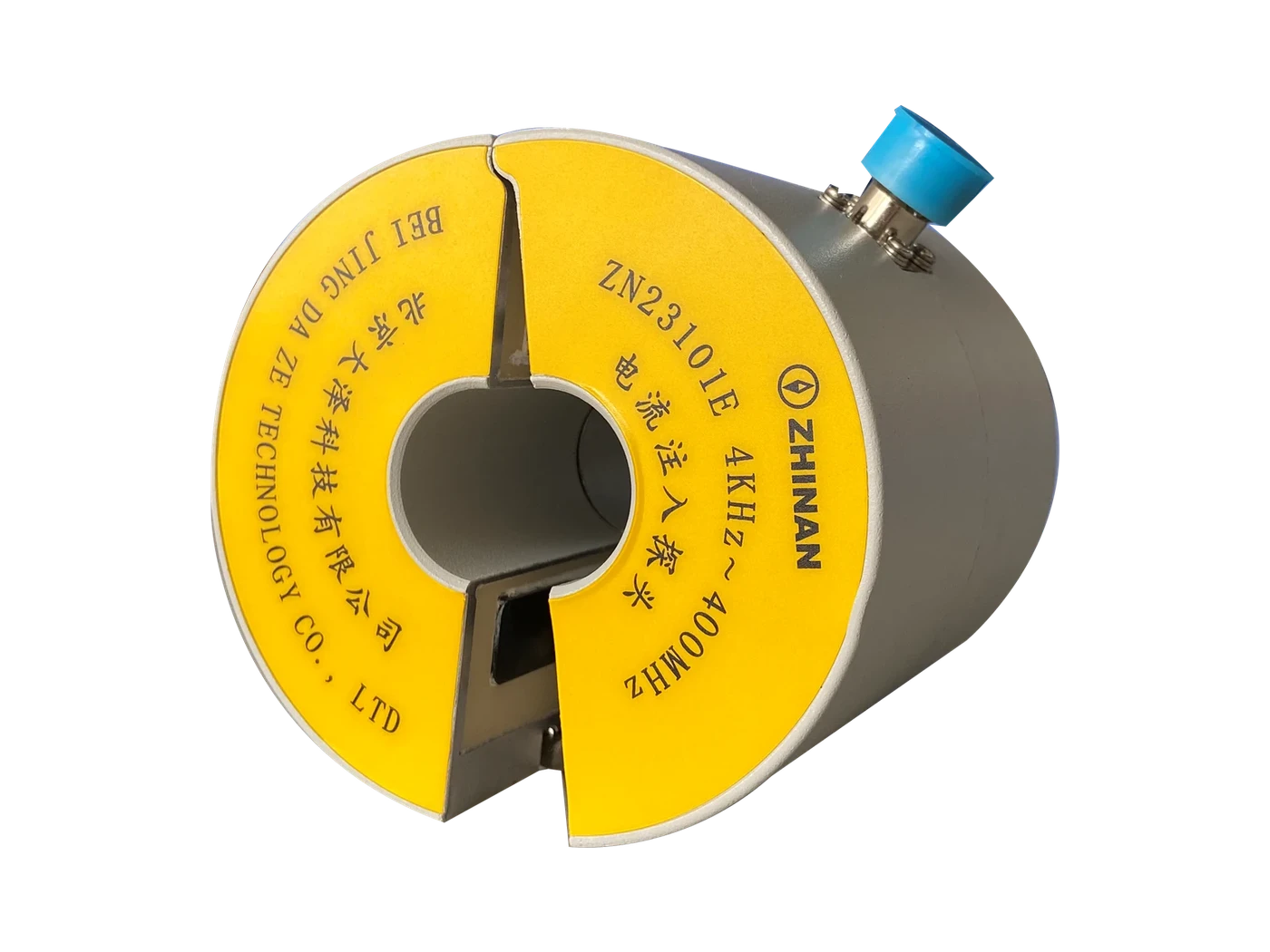

Bulk Current Injection Probe
A current injection probe for BCI testing of cable harnesses and electronic systems.
ISO 11452-4MIL-STD-461H / CS114
4 kHz–400 MHzFrequency range
BCITest method
HarnessInjection target
PRODUCT CAPABILITY
Designed around the measurement.
Wide frequency coverage for automotive and defense BCI methods
Clamp-on injection without breaking the cable harness
Calibration fixture available for level verification
Pairs with monitoring probes and RF power amplifiers
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range4 kHz–400 MHz
Device typeCurrent injection probe
Test methodBulk current injection
Related accessoryCalibration fixture
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN23101E. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN23101E used for?
ZN23101E is designed for Automotive BCI, CS114 testing, Cable-harness immunity. Its published frequency coverage is 4 kHz–400 MHz.
What frequency range does the ZN23101E cover?
The published frequency coverage is 4 kHz–400 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN23101E?
This product is associated with ISO 11452-4, MIL-STD-461H / CS114 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN23101E?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
