IEC 61000-4-6 CDNZN3750CDN-M2/M3

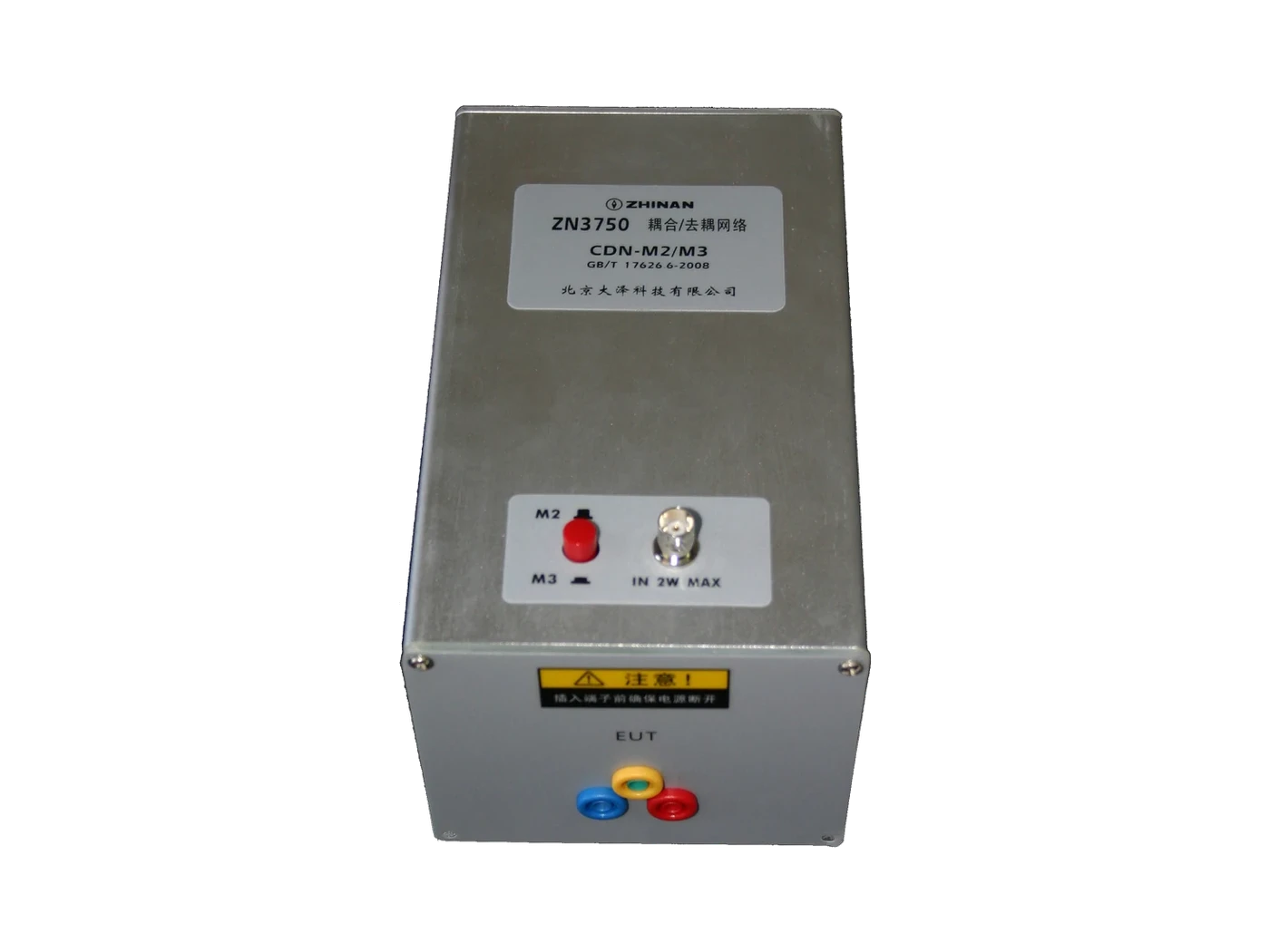

M2/M3 Coupling/Decoupling Network
A coupling and decoupling network for controlled RF injection onto two- and three-line ports.
IEC 61000-4-6
150 kHz–230 MHzFrequency range
M2 / M3Port configuration
CDNCoupling method
PRODUCT CAPABILITY
Designed around the measurement.
Defined common-mode impedance for reproducible injection
Integrated coupling and decoupling functions
Suitable for two- and three-conductor cable ports
Designed for calibrated conducted-immunity test systems
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz–230 MHz
Network typeCDN-M2 / CDN-M3
FunctionCoupling and decoupling
Primary useConducted RF immunity
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
System interfaces
Identify the source, receiver, amplifier, cables, adapters and control requirements.
Documentation
Confirm the required datasheet, calibration scope, report language and acceptance evidence.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3750CDN-M2/M3. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3750CDN-M2/M3 used for?
ZN3750CDN-M2/M3 is designed for IEC 61000-4-6, Power and signal ports, Conducted immunity. Its published frequency coverage is 150 kHz–230 MHz.
What frequency range does the ZN3750CDN-M2/M3 cover?
The published frequency coverage is 150 kHz–230 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3750CDN-M2/M3?
This product is associated with IEC 61000-4-6 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3750CDN-M2/M3?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
