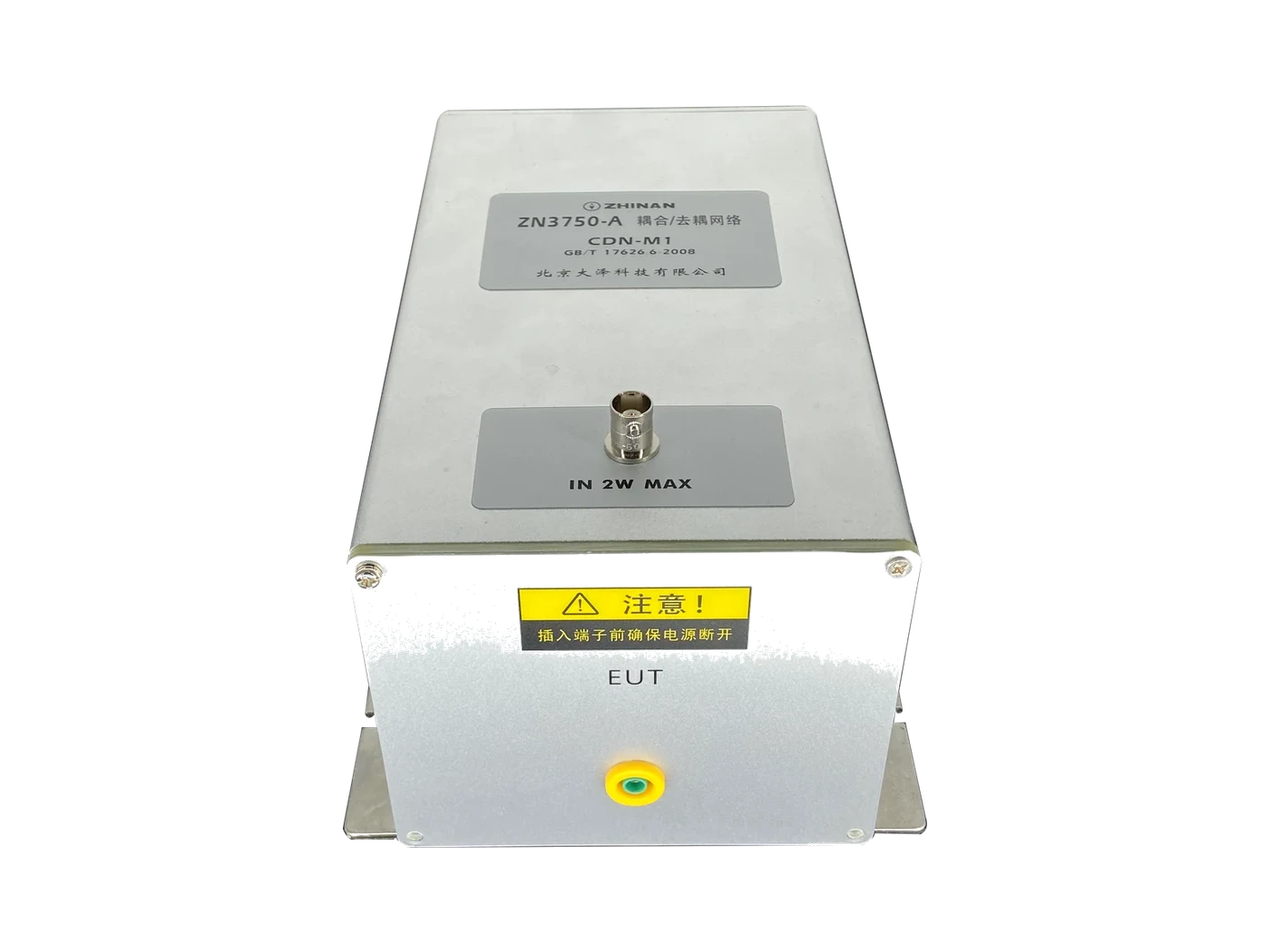

COUPLING NETWORKSZN3750-A
Coupling / Decoupling Network
Coupling / Decoupling Network with published frequency coverage of 150 kHz–230 MHz. It is intended for controlled RF coupling into power and signal ports and integration into complete EMC test chains.
IEC 61000-4-6IEC-61000-4-6
150 kHz–230 MHzFrequency coverage
150 kHz-230 MHzFrequency range
150 ΩCommon-mode impedance (Zce)
PRODUCT CAPABILITY
Designed around the measurement.
Designed for coupling / decoupling networks applications
Operating coverage: 150 kHz–230 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz-230 MHz
Common-mode impedance (Zce)150 Ω
Current range0-16 A
Signal portBNC，50 Ω
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
