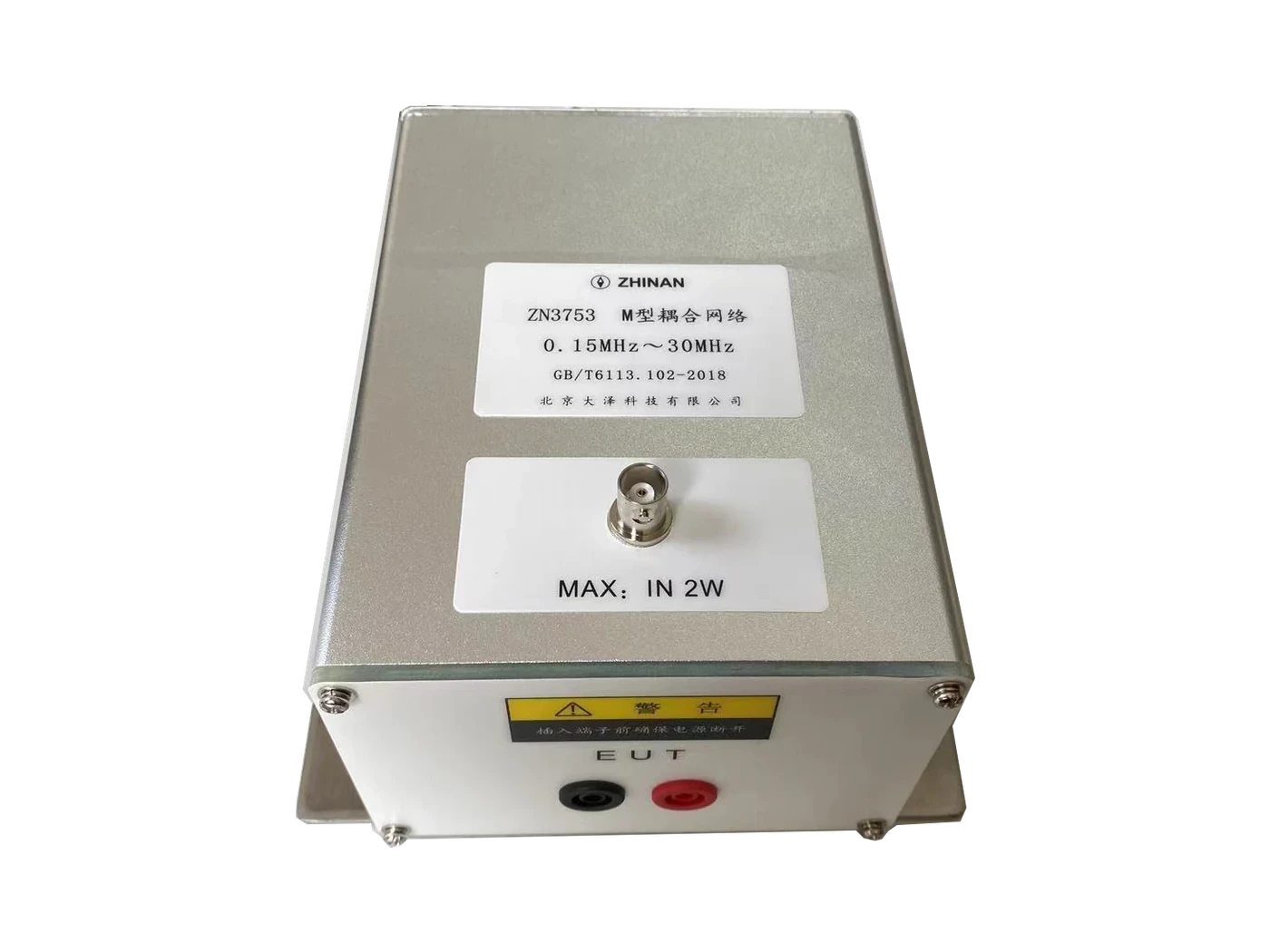

COUPLING NETWORKSZN3753
M-Type Artificial Network
M-Type Artificial Network with published frequency coverage of 150 kHz–30 MHz. It is intended for controlled RF coupling into power and signal ports and integration into complete EMC test chains.
CISPR 16 seriesCISPR 32
150 kHz–30 MHzFrequency coverage
150 kHz-30 MHzFrequency range
150 Ω ±20 ΩPort impedance
PRODUCT CAPABILITY
Designed around the measurement.
Designed for coupling / decoupling networks applications
Operating coverage: 150 kHz–30 MHz
Supports integration into complete EMC measurement and test chains
Technical configuration is matched to the applicable method, interfaces and required accessories
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz-30 MHz
Port impedance150 Ω ±20 Ω
Insertion loss< 0.8 dB
Weight1.35 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3753. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3753 used for?
ZN3753 is designed for Conducted immunity, Port coupling, Calibration setups. Its published frequency coverage is 150 kHz–30 MHz.
What frequency range does the ZN3753 cover?
The published frequency coverage is 150 kHz–30 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3753?
This product is associated with CISPR 16 series, CISPR 32 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3753?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
