COUPLING NETWORKSZN3751CDN-M5

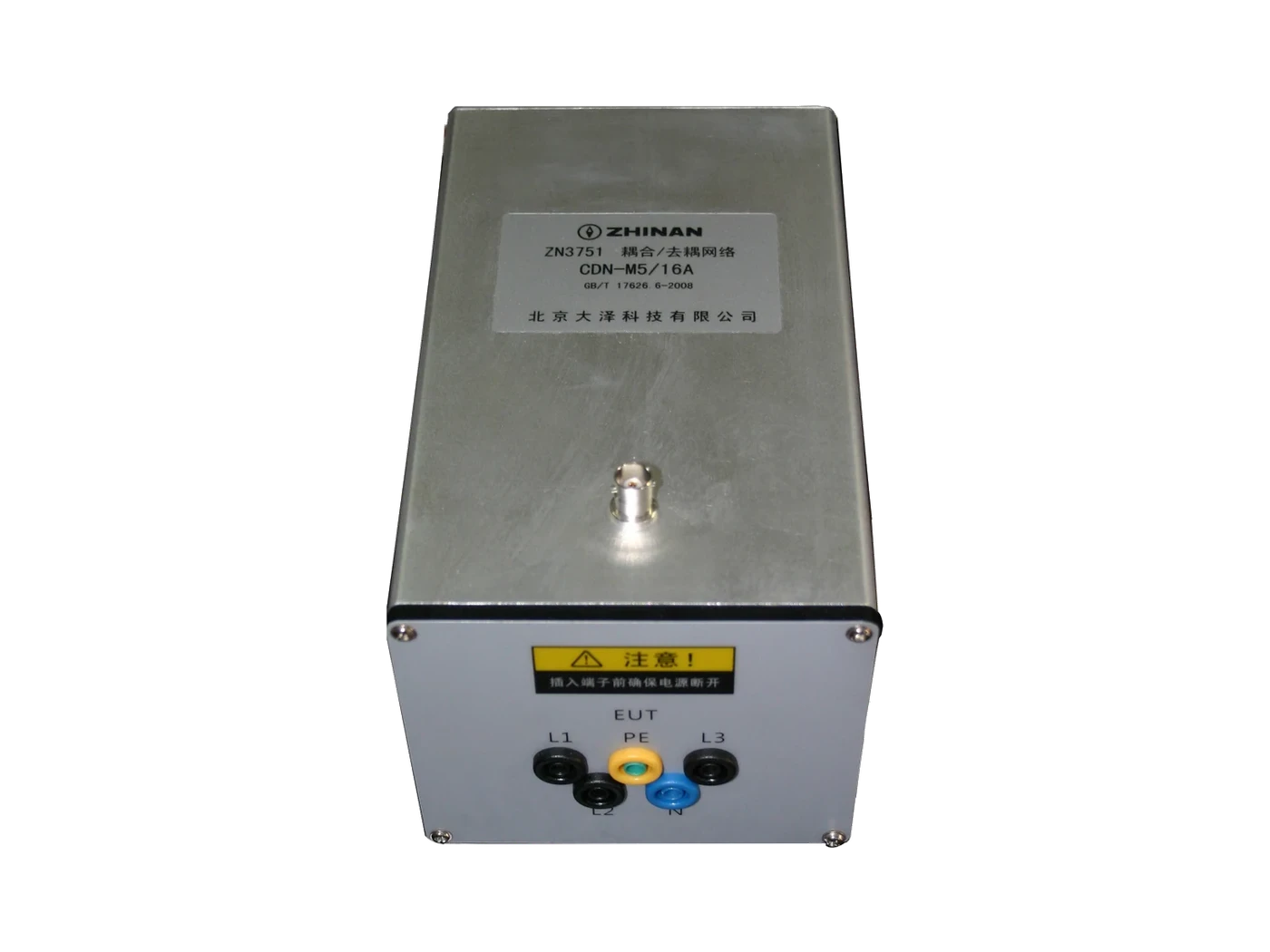

M5 Coupling / Decoupling Network
A 150 kHz-230 MHz CDN-M5 coupling/decoupling network for conducted-immunity testing of five-wire power ports.
IEC 61000-4-6IEC-61000-4-6
150 kHz–230 MHzFrequency coverage
150 kHz-230 MHzFrequency range
CDN-M5CDN type
PRODUCT CAPABILITY
Designed around the measurement.
Frequency range: 150 kHz-230 MHz
CDN type: CDN-M5
Voltage range: 250 V / 400 V
Weight: Approx. 1.5 kg
KEY SPECIFICATIONS
At a glance.
Key published specifications for initial equipment selection. Final configuration, accessories and calibration scope are confirmed in the datasheet and quotation.
Frequency range150 kHz-230 MHz
CDN typeCDN-M5
Voltage range250 V / 400 V
WeightApprox. 1.5 kg
Need the complete technical data?Download the English datasheet.
Building a complete test chain?Share the standard, level and test object.
Contact ZHINAN CONFIGURATION CHECKLIST
Make the quotation technically complete.
These are the points our application team will confirm before finalizing the model, accessories and calibration scope.
Measurement chain
Plan the receiver port, transient protection, RF cable and any attenuation.
Compliance package
Confirm impedance verification, calibration data and applicable test method.
PRODUCT QUESTIONS
What engineers ask before selection.
A concise starting point for evaluating ZN3751CDN-M5. The final model, accessories and calibration scope are confirmed against the complete test requirement.
What is the ZN3751CDN-M5 used for?
ZN3751CDN-M5 is designed for Conducted immunity, Port coupling, Calibration setups. Its published frequency coverage is 150 kHz–230 MHz.
What frequency range does the ZN3751CDN-M5 cover?
The published frequency coverage is 150 kHz–230 MHz. Final usable coverage depends on the complete measurement chain, interfaces, accessories and the applicable test method.
Which standards are associated with the ZN3751CDN-M5?
This product is associated with IEC 61000-4-6, IEC-61000-4-6 on the ZHINAN product page. The exact edition, test setup and applicability should be confirmed for the customer project.
What information is needed to configure or quote the ZN3751CDN-M5?
Please provide the applicable standard, required frequency range and level, test object, existing equipment interfaces, accessories and calibration or documentation requirements.
